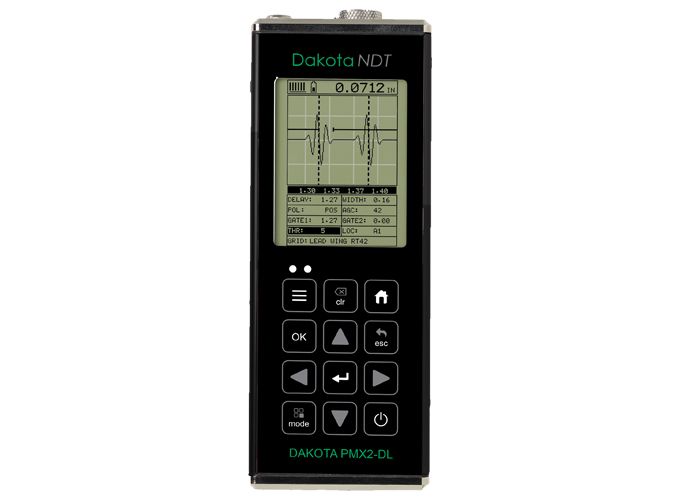

Dakota PMX2-DL Precision Thickness Gauge

Measurement Range:

PE contact on steel - 1.00 - 9144mm (0.040 - 360”)

IE on steel - 1.27 - 25.4mm (0.050 - 1”)

IE on plastic - from 0.127mm (0.005”)

EE contact on steel - 2.54 - 914.4mm (0.100 - 36”)

IEE on steel - 0.152 - 12.7mm (0.006 - 0.5”)

EEV contact on steel - 2.54 - 152.4mm (0.100 - 6”)

Resolution: 0.01mm (0.001”); 0.001mm (0.0001”) selectable

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 3 x AA batteries and via USB

Battery Life: Alkaline: greyscale 35 hrs; colour 12 hrs

Nicad: greyscale 10 hrs; colour 5 hrs

NI-MH: greyscale 35 hrs; colour 12 hrs

Gauge Weight: 383g (13.5oz) - including batteries

Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)

Packing List: Unit; standard 1/4" Delay Line Transducer (2 Delay Tips – 3/8” & 1/2” L) & Cable; Couplant; Manual; Certificate of Calibration; AA Batteries and Plastic Carrying Case.
