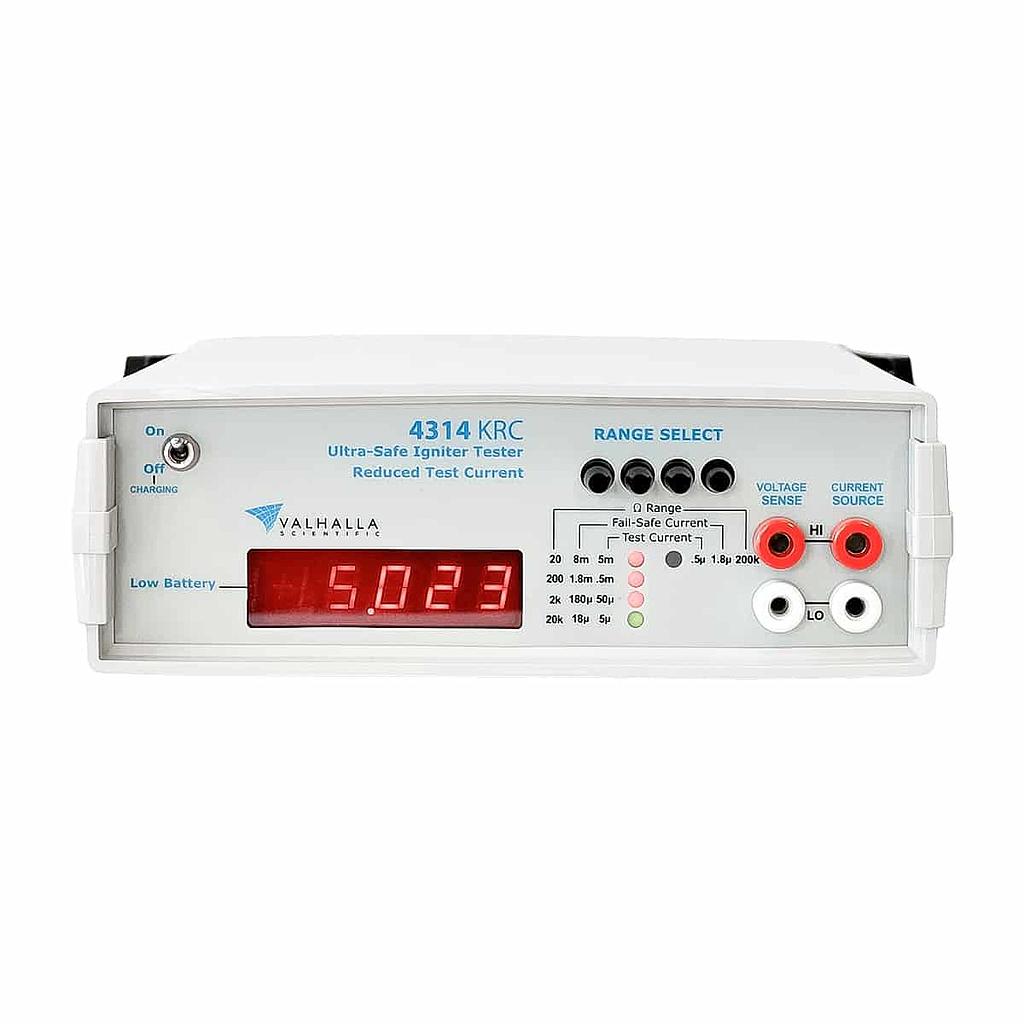

Valhalla Scientific ALPHA 4314 KRC デジタルイグナイターテスター
生産者: Valhalla Scientific Model: ALPHA 4314 KRC 品物を保証します: 12 Month - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
General Specifications:
Display Type: 4 ½ digits LEDs (19999)
Overload Indication: O.L.
Conversion Rate: 3 readings per second
Terminal Configuration: 4-Wire Kelvin
Current Source Compl. Voltage: Clamped at 1.6V
Power: 4“D” Cell 1.2V recharg. NiMH Batteries 10000mAh
Battery Charger: 6VDC at 300mA nominal
Temperature
Temperature Coefficient: ±0.002% per °C(from 0°C~15°C and 35°C~50°C)
Operating Temp. Range: 0°C~50°C
Storage Temp. Range: -10°C~70°C
Physical Specifications
Width: 9.5”/24cm
Depth: 11”/27cm
Height: 3”/8cm
Weight: 3lbs/1.3kg net; 6lbs/3kg shipping
Accessories:
Battery Charger 115Vac to 6VDC @ 300mA
4 Heavy Duty rechargeable NiMH Batteries 1.2V 10000mAH.
Carrying Case for the meter with room for the battery charger and Lead Sets
Pelican 1500 Hard Carrying Case with Custom Foam for the meter, battery charger, up to 3 sets of leads and extra batteries.
Standard 19" equipment rack adaptor
Options:
This option provides parallel BCD data on p rear-panel 50-pin connector. All outputs are TTL comparable levels with a drive capability of 1 LS load.
Continuous Isolated AC Power
6-pin Mil-Spec circular connector (MS3112E10-6S) replaces the four-terminal banana jacks and the battery charger jack. Makes it physically impossible to simultaneously connect the AC/DC Charger while measuring with the test leads.
