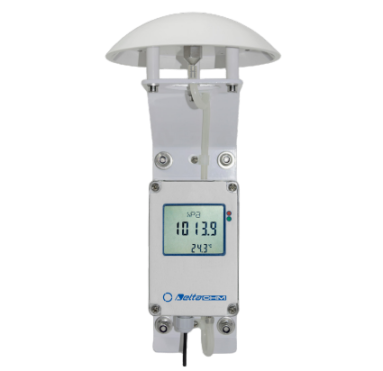

Senseca BAROsense-10LK 気圧送信機 (300…1100 hPa, 15…30 Vdc, LCD)

Name: Senseca BAROsense-10LK 気圧送信機 (300…1100 hPa, 15…30 Vdc, LCD)
Brand: Senseca
SKU: SensecaBAROsense-10LK
Availability: OutOfStock

Output

RS485 (Modbus-RTU or ASCII proprietary protocol)+ analog 0/4…20 mA or 0…10V

Power supply: 15…30 Vdc

Materials

Transmitter: polycarbonate, pressure input in nickel-plated brass

Static port: ASA

Support bracket: aluminium alloy

BAROMETRIC PRESSURE

Sensor: Piezoresistive

Measuring range: 300…1100 hPa

Configurable for the analog output: default 600…1100 hPa

Resolution:

0.1 hPa for the display

0.01 hPa for the output

Accuracy

± 0.5 hPa (700…1100 hPa) @ 20 °C

±1 hPa (500…1100 hPa)

±1.5 hPa (300…500 hPa) @ T=(0…60 °C)

Long-term stability: < ±1 hPa/year

Details

Datasheet

Manual

生産者:	Senseca
Model:	BAROsense-10LK
