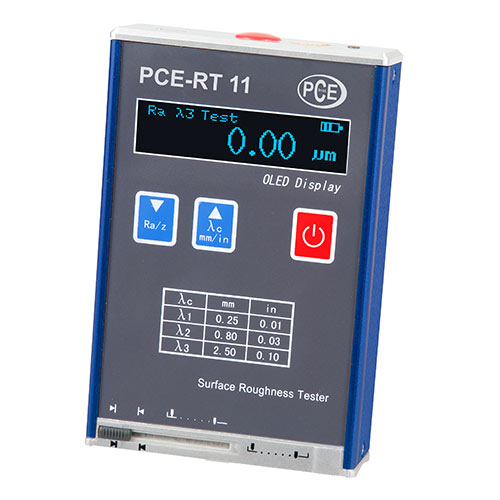

PCE RT 11-ICA 粗さテスター

Specification

Roughness parameters:    Ra, Rz, Rq, Rt

Accuracy : ± 15%

Repeatability : < 12%

Measuring area Rz, Rt: 0.1 … 50 µm

Measuring area Ra, Rq: 0.05 … 10 µm

Cut-off length: f0.25 mm, 0.8 mm, 2.5 mm

Scanning path in total: 6 mm

Probing speed: 1 mm / s

Probe system: Piezoelectric probe

Inclination angle: OLED display

Ambient temperature: -20 … 40°C / -4 ... 104°F

Humidity: < 90 %

Power supply: 3.7 V Li-Ion battery

Load-time: 3 hours

Dimension : 106 x 70 x 24 mm / 4.2 x 2.8 x 1 in

Weight:  200 g / < 1 lb

Delivery contents

1 x Material Tester PCE-RT 11-ICA

1 x Roughness standard

1 x Charger

1 x Case

1 x User’s manual

1 x ISO calibration certificate
