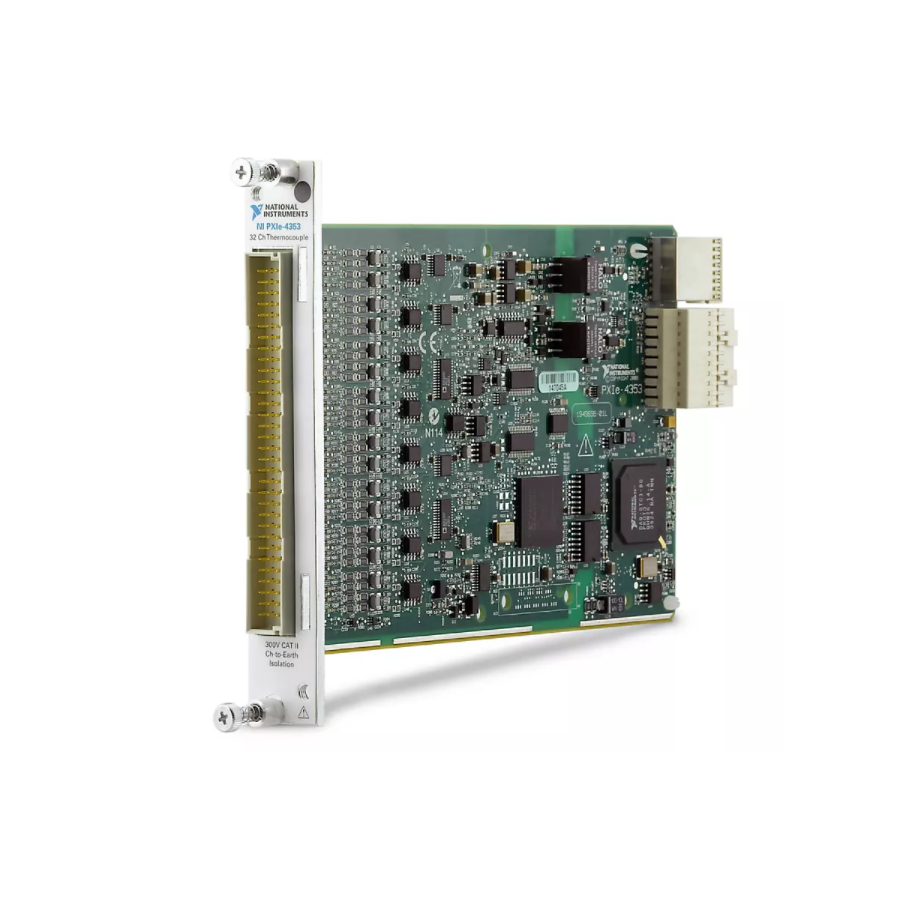

NI PXIe-4353 PXI Temperature Input Module (0°C~55°C, 32-Channel, Thermocouple)

  • 生産者:NI
    Model: PXIe-4353
    P/N: 781348-01
  • 連絡先
    • 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Supported Sensor Type: Thermocouple

Maximum Number of Differential Analog Input Channels: 32

Analog Input Isolation: 300 V Bank Isolation


Details

Takes measurements from thermocouples and resistance temperature detectors (RTDs) for PXI systems.

The PXI Temperature Input Module features up to 32 channels of analog temperature measurements. This module support both high-speed and high-resolution modes. You can program channel configurations and scale measured data into engineering units. Some models include autozero channels for offset compensation as well as open thermocouple detection to identify disconnected thermocouples, while others support 2-, 3-, or 4-wire resistance temperature detector (RTD) measurements.The PXI Temperature Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
