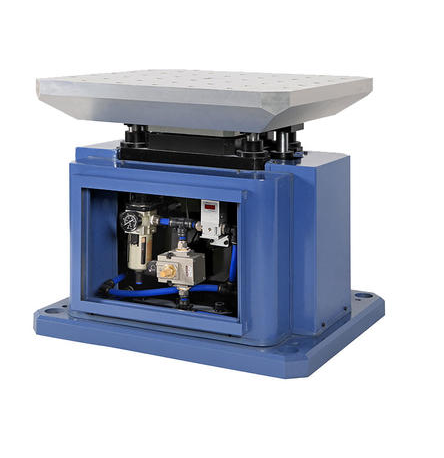

Joeo PBT-200 空気圧バンプ試験機 (200kg)

Max. Loading (kg): 200

Peek Value Acceleration (m/s): 50~1000

Pulse Time (ms): 20~3

Shock Frequency (times /min): 10~80

Bench Size WxD(mm): 700x700

Max. Dropped Height (mm): 60

Impact and Crush Wave: Half Sine wave , (trapezoidal wave , and the sawtooth wave, square wave optional)

External Dimension WxHxD (mm): 850x1350x1100

Weight (Kg): 2000

Protection Device: Door protection, over-load protection, zero signal protection

Power: AC220V;  1∮ 3 lines; 50/60HZ   AC380V;  3∮ 5 lines;  50/60HZ

Environmental Conditions: Temperature : 25C±5.0℃;  Humidity : <85%R.H.(25°C)

Standard: GB/T2423. 5. 6-1995, IEC68-2-29, JJG497-2000, IEC68-2-27

Control Measure System: Shock DAQ computer control measuring system
