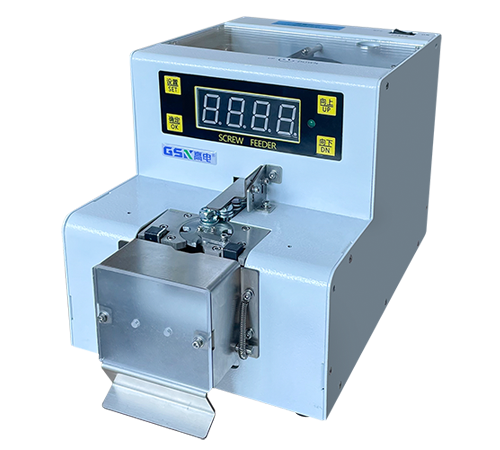

GSK DS-D1288-M35 大ネジ計数機 (3.5mm)

Product Details

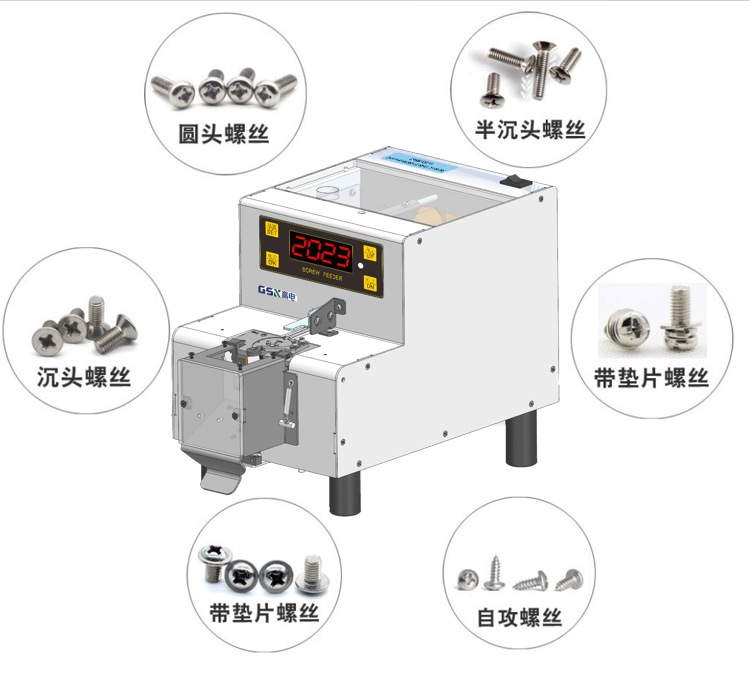

1. This product is a large turntable screw counting machine, suitable for a variety of need to verify the number of screws in the working environment, the number of screws verified accurately and quickly, widely applicable to a variety of types of screws, such as M2.0-M6.0 round head screws, flat head screws, self-tapping screws, screws with gasket, countersunk screws and other ordinary and non-standard screws.

2. Through the setting interface, it can be set to one or more groups of points parameters, and it can also achieve a single cycle or a variety of cycles to meet the needs of time production.

3. The screws run smoothly in the drum, and any screws that do not enter the track in the correct direction will fall into the drum and enter the next cycle, and it is not easy to get stuck in normal use.

4. The work efficiency can be adjusted feeding and vibration independent control, can freely set the ideal delay time, gear feeding turntable and four degree takeout disk can be independently controlled, can be set according to different screws and rotation speed, adjust the screw feeding and dividing speed, suitable for a variety of operations.

5. Can greatly improve the production efficiency screw automatic indexing (90°) to the position of the feeding port, without manual correction can directly take the material, greatly improve the production efficiency.

6. Screw counting function The screw machine is equipped with a digital display panel, through which the setting parameters can be personalized adjusted, and with automatic screw counting function.

7. Fault alarm function the dial will automatically reverse when the material is stuck, normal recovery after positive rotation, abnormal conditions occur when the screw will automatically start the alarm device (lack of material).
