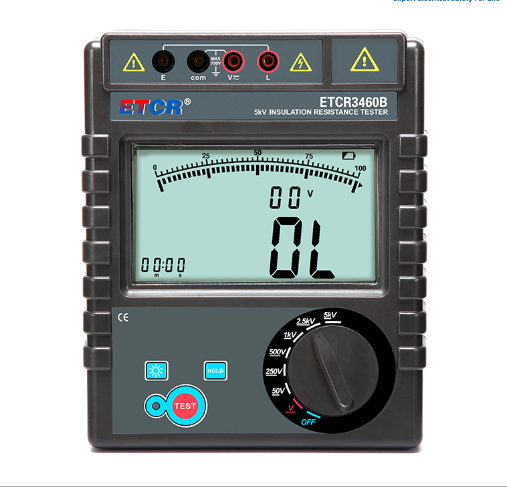

ETCR ETCR3460B 絶縁抵抗計 (2mA, 50V~5000V, 0.1MΩ~1000GΩ, AC/DC:0V~750V)

Power Supply: DC 1.5V LR14X6PCS

Rated Voltage: 50V; 250V; 500V; 1000V ;2500V; 5000V

Output Voltage Accuracy: (5%~10%) ± 10V (5%~10%) ± 10V

Insulation Resistance Range: 0.1MΩ~1000GΩ

Max Insulation Resistance Accuracy: ±3%rdg ± 5dgt

Voltage Range: AC/DC: 0V~750V

Voltage Accuracy: ±5%rdg ± 5dgt

Short Circuit Current: 2mA MAX

Shift: Turn the shift rotary knob to select the gears Backlight Controllable off-white backlight, suitable for dark site

Display Mode: 4 digital LCD display，LCD size: 108mm×65mm

Meter Dimension: 212mm(L)X175mm(W)X76mm(H)

Weight: Tester: 1230g(include battery); Total weight: 2.4kg(include accessories)

Battery Voltage: Battery low voltage symbol display, and remind to replace the battery in time Automatic Discharge

Auto Shutdown: 15 minutes without any operation after starting up, the tester will shutdown automatically

Power Consumption: Standby: about 40mA(backlight off); Start up with backlight: about 50mA; Measurement:: about 100mA(backlight off)

Working Environment: -10℃~40℃; Below 80%RH

Suitable Safety Standard: IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution 2)

Accessories: Tester:1PCS; High voltage probe teste line: 1PCS red; Pen probe test line: 1PCS black; Alligator clip test line: 1PCSblack; Alligator clip: 1PCS(black);Tool bag: 1PCS
