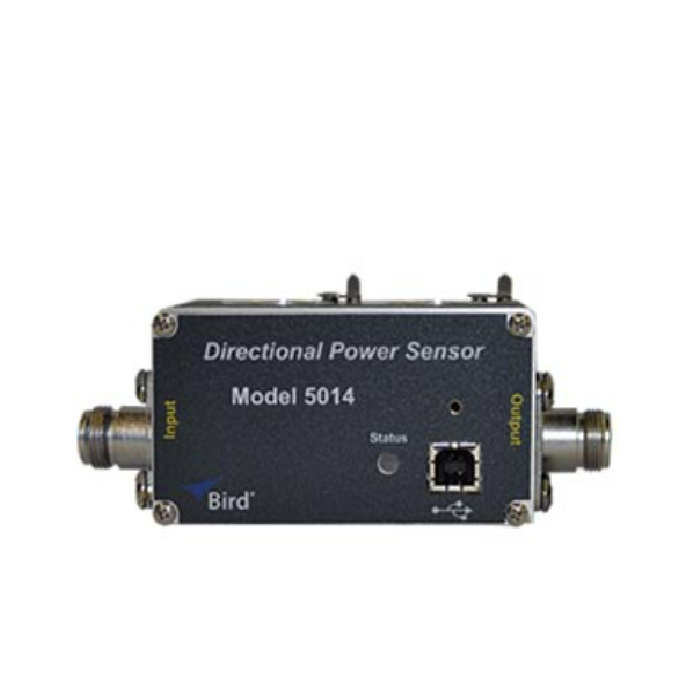

Bird 5014 RFパワーセンサー (2 MHz ~ 2.7 GHz, 16dB)

Frequency Range: 2 MHz to 2.7 GHz

Power Range: E125 mW to 1 kW full scale

Impedance: 50Ω

Accuracy:

       ± 5% of reading (15 to 35 °C)

       ± 7% of reading (-10 to 50 °C) Peak Power

       ± 8% of full scale

Insertion VSWR; 1.05:1 from 0.45 to 1000 MHz (with N connectors)

Dynamic Range: 16 dB

Settling Time: < 2.5 seconds

Power Supply: From host instrument via cable connection

Interface: USB 1.1, Type B

Connectors: Type-N (Female)

Temperature Operating: -10 to +50 °C (14 to 122 °F)

Storage: -40 to +75 (-40° to 167°)

Humidity: 95% (max), non-condensing

Dimensions: 2.3 in x 2.1 in x 3.5 in /(58 x 53 x 89 mm) excluding connectors

Weight: 1.12 lbs (0.51 kg)
