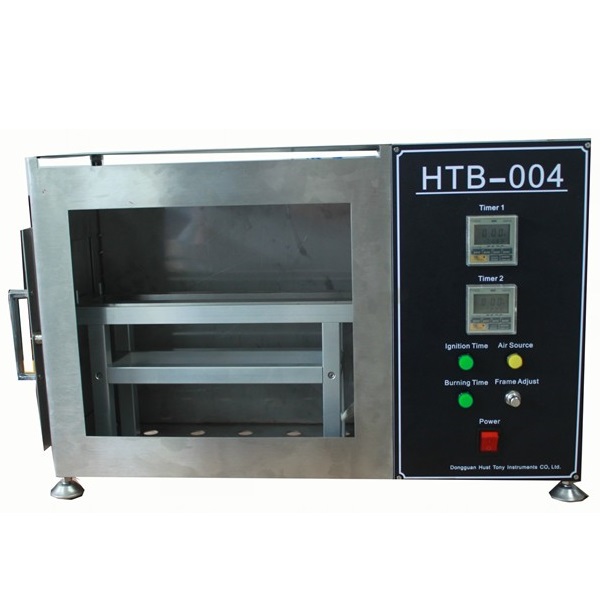

TONYHK HTB-004 Horizontal Flammability Tester
Manufacturer: TONYHK Model: HTB-004 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technical parameters：
Test Chamber: 381x203x356mm, bottom gas vent diameter: 19mm*10
Sample fixture: U shape
Interior casing: 30mmx50mm
Sample: 356x100mm, thickness no more than 13mm
Samples: at least 5 pcs
Burner nozzle: inner diameter 9.5mm
Burner angle: 90°
Burn flame altitude: 38mm
Burning time: 15s
Marker line distance: 254mm
Burning gases: natural gas, town gas or butane
Size: 57x26x37cm
Weight: 28Kg
Power: 1∮ AC 220V 50Hz 3A
Standards: ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132
