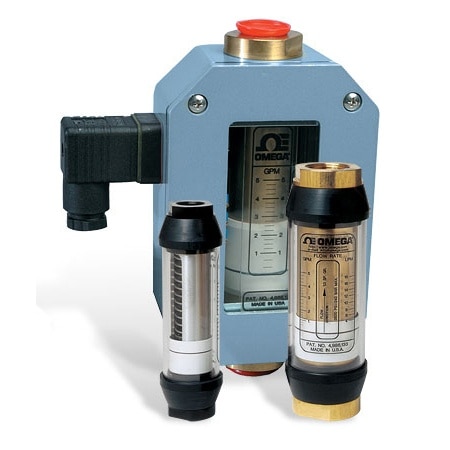

OMEGA FLMH-3415BR Variable Area In-line Liquid Flow Meters (15 GPM, 3/4 in, NPT Female)
Manufacturer: OMEGA Model: FLMH-3415BR - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Scale: Direct Read
Length: 7.2 in
Accuracy: ± 2 %, ± 5% with transitional flow
Diameter: 2.375 in
Materials: Brass
Output Signal: N/A
Repeatability: ± 1%
Valve Included: false
Mechanical Life: >10^7 cycles
Water Flow, Max: 15 GPM
Water Flow, Min: 1.5 GPM
Materials, Wetted: Brass, Buna-N (NBR), EPR, FKM, Perfluoroelastomer, PTFE, Stainless Steel
Particle Size, Max: 76 μm
Media Compatibility: Hydraulic Oil, Light Oil, Oil
Additional Features 1: Dual Reading Scale
Operating Pressure Note: 240 bar (3500 psig)
Operating Pressure, Max: 3500 psi
Process Connection Size: 3/4 in
Process Connection Type: NPT Female
Scale Media Calibration: Oil
Process Temperature, Max: 116 °C
Standard Calibration Fluid: DTE 25 @ 43°C (110°F), 0.873 sg
