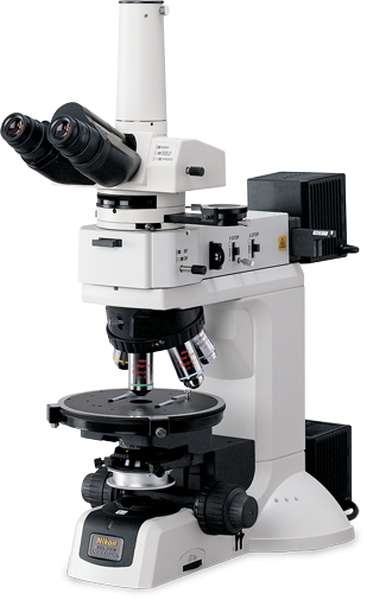

NIKON Eclipse LV100N POL Polarizing Microscope (4X~100X Oil)

Optical system: CFI60 Infinity

Illumination

12V-100W Halogen lamp

Fly-eye optics for high quality imaging with no variations in luminescence throughout the view field.

NCB11, ND8 filters built-in; GIF filter (included)

Tubes: P-TT3 Trinocular Tube for polarizing microscopy (Binocilar part: Vertical tube = 100:0, 20:80, 0:100)

Eyepieces (F.O.V. mm): CFI 10X (22), CFI 10X CM (22)

Centering quintuple nosepiece (detachable); DIN slot accepts various compensators for qualitative or quantitative measurements.

Set of CFI Achromat P objective (for diascopic illumination): 4X, 10X, 40X, 100X Oil

Focusing

Coaxial coarse/fine focus knob; Focus stroke: 30mm;

Coarse: 14 mm/rotation, Fine: 0.1 mm/rotation, Minimum reading: 1 μm

Stage

Large, pre-adjusted, circular graduated stage and click-stops in 45° increments.

Rotatable 360° horizontally; can be fixed at a specific position;

Graduated 360° (in 1° increments)

The smooth stage movement allows stable and easy rotation, providing high operability and high-quality polarized images.

Stage Clips (included): 02 unit

Intermediate tube

Built-in focusable Bertrand lens removable from optical path;

Conoscopic/Orthoscopic observations switchable;

Analyzer built-in: 360° rotary dial; Minimum reading angle 0.1°

Accessory plate/compensator slot

Compensators

P-CL Standard 1/4λ & tint plate

IF 546/12 retardation filter: to increase the precision of retardation measurement

Senarmont compensator: for retardation measurements from 0 to 1 λ

Quartz wedge: permits retardation measurements from 1 to 6 λ orders

Condensers: Dedicated strain-free swing-out type; P Achromat NA 0.9

Polarizers: Fixed to the bottom of the condenser holder; with scale markings

Includes

Main body: 01 unit

Tube: 01 unit

Eyepiece 10x: 02 units

Nosepiece: 01 unit

Set of Achromat P objectives with 04 magnifications (4X, 10X, 40X and 100X oil): 01 unit

Condenser: 01 unit

Stage: 01 unit

Halogen lamp: 02 units

Filters (NCB11, ND8): 01 set

Compensators (P-CL Standard 1/4λ & tint plate, quartz wedge or Senarmont compensator): 01 sets

Immersion oil 50ml: 01 unit

Dust cover: 01 unit
