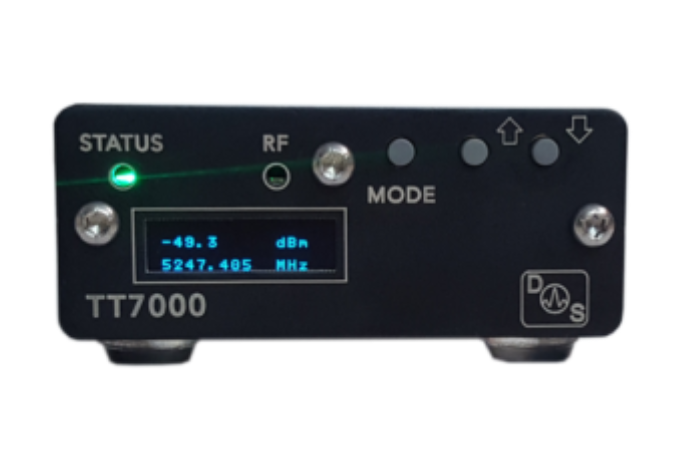

DS INSTRUMENTS TT7000 RF GENERATOR WITH POWER METER (50MHz - 8GHz)
Manufacturer: DS INSTRUMENTS Model: TT7000 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power meter frequency range: 50MHz – 8GHz
Power meter typical dynamic range: 50dBm (-45dBm to +5dBm)
Power measurement speed: 25mS min (40Hz)
Power meter Resolution: 0.05dB
Power meter absolute accuracy: ±0.75dB typical
Frequency counter range: 100MHz – 7GHz
Frequency counter sensitivity: -25dBm typical
Frequency counter resolution: 1KHz
Frequency counter accuracy: ±3KHz
Frequency counter speed: 1 Second
Signal generator range: 300 – 9600MHz
Signal generator bands: 300-4800, 4800-9600MHz
Band 1 power level: -15 to +15dBm in 0.25dB steps
Band 2 power level: +12dBm typical
Signal generator step size: 10Hz
Internal reference stability: ±280 PPB
