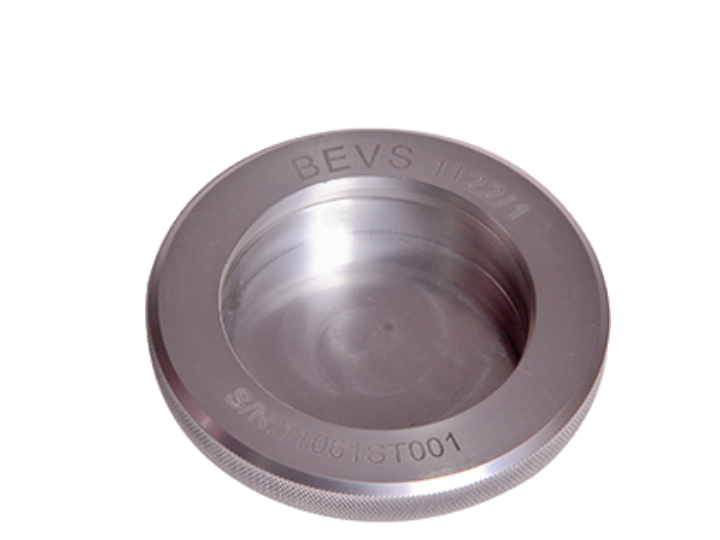

Bevs BEVS 1122/1 Payne Permeability Cup (25cm²)
Manufacturer: Bevs Model: BEVS 1122/1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Precision machining ensures exposure area
Exposed area : 25cm²
High grade anodized aluminum
Easy to use and clean
Introduction:
This BEVS simple instrument is used to determine the permeability of films of paints ,varnishes, coatings, coating systems and related products, it consists of aluminum cup, seal ring and threaded ring cover.
Under a controlled environment, the coating film is cut out to form a disc and fixed by seal ring/cover onto the cup which fill required liquid (distilled water) or dry desiccant, weight loss or gain of the cup's content over a specified time which is used to determine the rate of vapor transmission through the film. It is recommended to carry out the test in three times due to the film imperfections.
Standard:
ASTM D1653, ISO 7783
Order Information:
BEVS 1122/1 Permeability Cup 25cm²
BEVS 1122/2 Permeability Cup 10cm²
