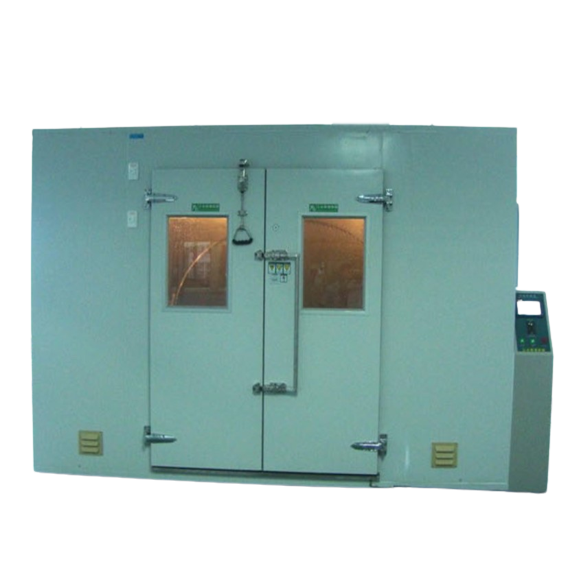

Zhongzhi CZ-A-4000C 温湿度试验箱 (-20℃ ~ 80℃, 20% ~ 95%R.H)
制造商: Zhongzhi Model: CZ-A-4000C - 报价要求
- 联系
Internal DimensionsWxHxD(m): 1.5x1.8x1.5
External DimensionsWxHxD(m): 2.5x2.1x1.7
Temperature Range: -20℃ ~ 80℃(Over 80°C will be customized)
Humidity Range: 20% ~ 95%R.H (10%-98%R.H/5%~98%R.H special conditions for selection)
Analytic Accuracy/Evenness Degree of Temperature and Humidity: ±0.1℃; 0.1%R.H/±1.0℃; ±3.0%R.H
Control Accuracy/ Temperature Stability of Temperature and Humidity: ±1.0℃; ±2.0%R.H/±0.5℃; ±2.0%R.H
Heating/Cooling time: About 3.0°C/min; about 1.0°C/min (down 2~10°C per minute for special condition of application)
Internal and Outer Materials: The external box is the SUS304# stainless steel surface strips or cold-rolled steel paint (optional), the inner box is SUS 304# stainless steel.
Insulation Material: High temperature resistant high density polyurethane foam insulation materials.
Cooling System: The test chamber is less than 10 m³, can select air-cooled or water-cooled; if more than 10 m³, they are all water-cooled
Protective Device: Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, failure warning system
Parts: Recorder (optional), watching window, 50mm test hole, PL internal bulbs, partition plate, dry and wet ball gauze
Controller: South Korea "TEMI"
Compressor: France's "Tecumseh" Brand '
Power: 3Փ 380VAC ± 10% 50/60Hz
Note: If the space is less than 10 m³, it can be made as whole structure, movable or board assembly structure; if it more than 10 m³, all of them are board assembly structure.
