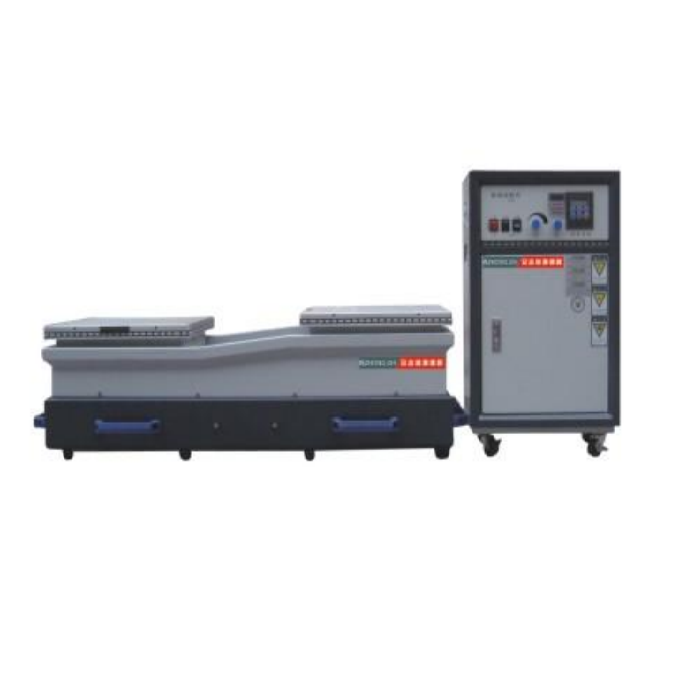

Zhongzhi CZ-80ZY 电磁垂直+卧式振动台 (40kg)

Maximum Test Load: 40kg

Manual Frequency Range: 1-200Hz

Automatic Frequency Sweep Range: 1-200Hz

No-load Displacement Range: 0-5mm

Vibration Direction: Vertical + Horizontal

Vibration Waveform: Sine wave

Test Mode: FM/automatic, Sweep frequency (several times, linear frequency, random vibration)

Time Range: 0.01s-99.99h

Vertical Platform Dimension (LxWxH): 450 x 450 x 46mm

Horizontal Platform Dimension (LxWxH): 450 x 450 x 46mm

Bench Dimension (LxWxH): 1200 x 500 x 450mm

Size of Control Cabinet (LxWxH): 500x380x1050mm

Power (V/Hz):  220/50 ± 5%

Power Consumption: 2.2KVA

Cooling Method: Air cooling

Ambient Temperature: +5°C ~ +35°C

Relative Humidity: <85%RH
