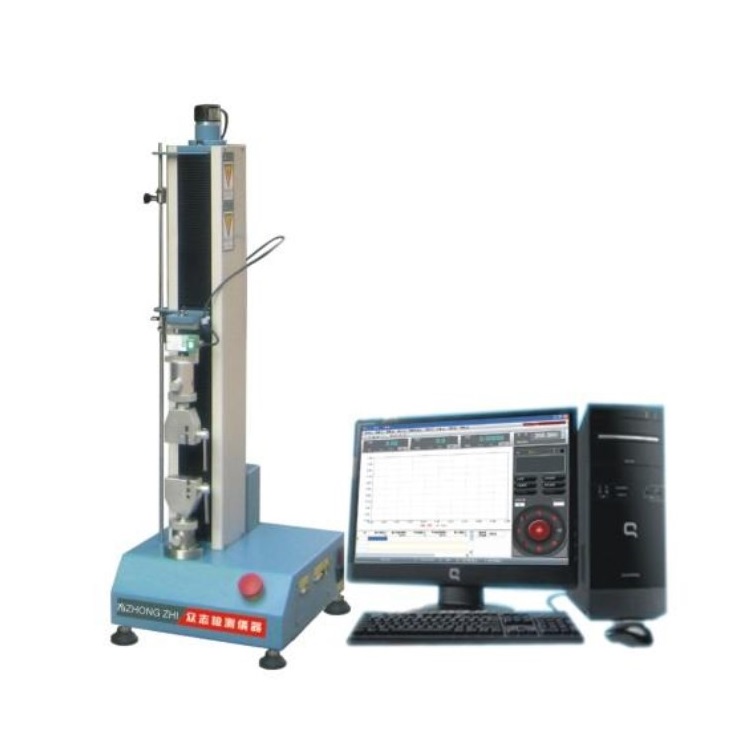

Zhongzhi CZ-8011 轻型计算机型拉伸试验机

Capacity (optional): 10N,50N,100N,250N,500N

Unit (Switchable): N,kN,kgf,Lbf

Load Resolution: 1/250.00Q

Precision Grade of Machine: 1 Level

MaxStroke (Exclude the Grips): 400mm(Standard),600mm(Heighten)(Optional)

Effective Width: No Limit

Test Speed: 1-500mm/min or others

Speed Accuracy.: ±0.5%

Displacement Resolution: 0.00125mm

Software: Standard control software/Closed-loop control softwar

Motor: Intelligent stepper motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH): Standard:280x335x840 mm,Heighten:280x335x1040 mm

Power: AC220 5A or specified by user
