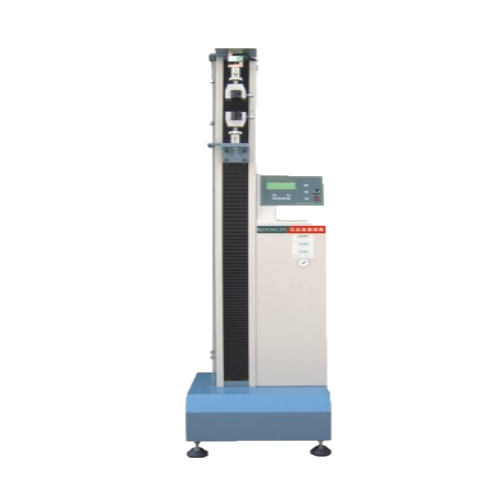

Zhongzhi CZ-8004 微机拉伸试验机

Capacity (Optional): 50N,100N,250N,500N,1,2.5,5kN

Unit (switchable): N,kN,kgf, Lbf

Load Resolution: 1/25,000

Accuracy Grade of Machine: 1 Level

Max Stroke (Exclude the Grips): 1000mm

Effective Width: No Limit

Test speed: 1-500 mm/min, others (Customized)

Speed ​​accuracy ± 1%

Displacement Resolution: Stroke: 0.00125 mm/Extensometer: 0.025 mm

Motor: AC frequency control motor

Transmission Rod: High accuracy of ball screw

Displayer: Can display, print force value and max deformation value; automatically stop when sample breaks down, overload protection function.

Main Unit Dimension (WxDxH): 500x400x1860mm

Power: AC220/50HZ 5A or specified by user
