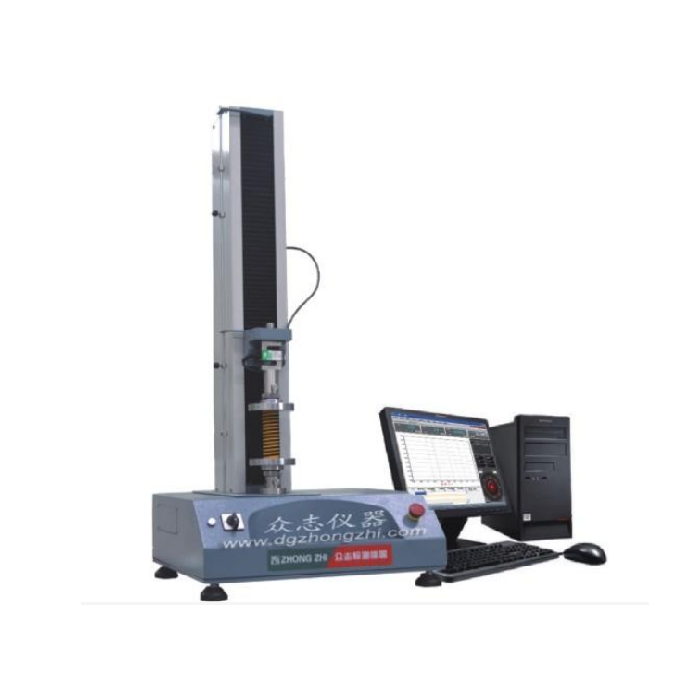

Zhongzhi CZ-8000TH 弹簧拉伸和压缩试验机

Capacity (optional): 100N, 250N, 500N, 1KN, 2.5KN, 5KN, 10kN, 15kN, 20KN, 30KN

Unit (Switchable): N,KN,kgf,Lbf,MPa,Lbf/In,kgf/mm

Precision Grade of Machine:0.5 Level/1 Level

Load Resolution: 1/500,000 (0.5 Level)/ 1/250,000 (1 Level)

Load Magnifying Rate: Section-less

Max Stroke (Exclude the Grips): 650 mm (Standard) 850 mm (Heighten)(Optional)

Effective Width: 400 mm,others(Customized)

Test Speed: 0.001-500 mm/min or others

Speed Accuracy: ±0.5%

Displacement Resolution: 0.0004mm

Software: Spring test special software

Motor: Servo motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension(WxDxH): Standard: 585x505x1290 mm

Power: AC220/50Hz 10A or specified by user
