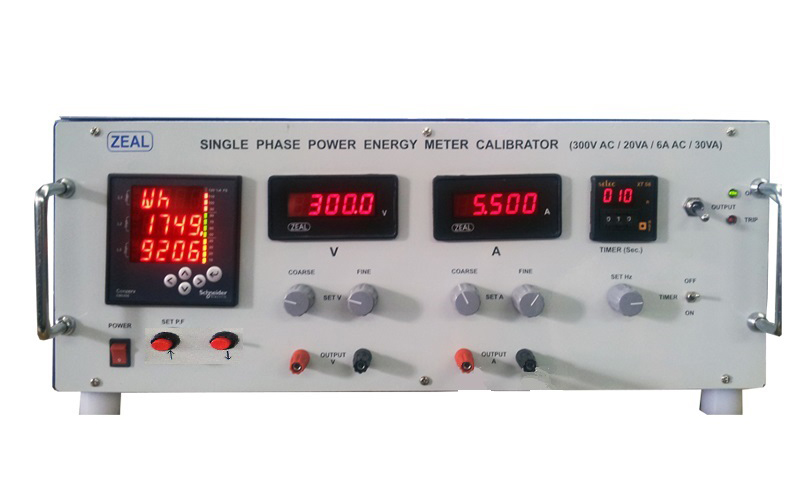

ZEAL ZMSΦPEMC 功率表校准机 (1相)

Input: 230 VAC, 50 Hz / 110 VAC, 60 Hz

Output Voltage Ranges: 0 to 300 V ( L - N )

Output Current Ranges: 0 to 6 A

Mode: 1 Phase

Output Ports: V ( Hi, Lo ), I ( Hi, Lo )

PF Range: 0.5 to Unity

Compliance: 20 VA, at FS on V ranges,

30 VA, at FS on A channel

Frequency: 45 to 60 Hz

Timer: Programmable timer counter to keep output ON for fix duration. Duration programmable in minute.

Setting Voltage, Current, Frequency setting by multiturn potentiometers, Power factor by Push Buttons Keys, Timer by thumbwheel switch.

Sinusoidal Outputs: THD < 1.5%

Protections: Overload and Short circuit
