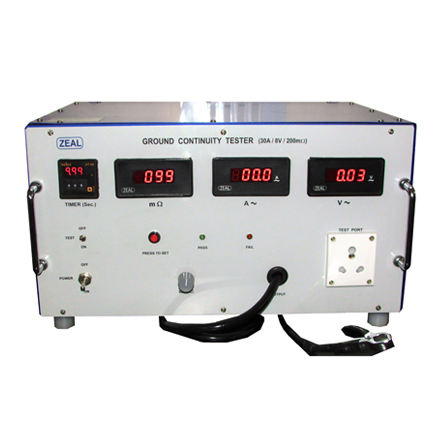

ZEAL ZMGCT Ground Continuity Tester (0~200 milli Ohm)

Power: 230V AC, ± 10%, 50 Hz

Resistance Measurement Range: 0 to 200 milli Ohm

Typical Test Current: 30 A ± 0.15% AC, (Test current severity may be changed on request )

Open circuit voltage: 8V, AC

Programmable Timer: 1 to 60 sec

Metering: 3 1/2 digit Digital V, A and milli Ohm meter

Accuracy:

  • V : 1.5% of reading, A : 1.5% of reading

  • mΩ : 1.5% of reading ± 5 dgt

Indications: Trip, Test On, Test OFF

Accessory:

• High current crocodile wire/Test probe.

• The Ground /Earth continuity tester works on test current of sinusoidal waveform. The typical test current severity is 30A.

• Meters indicate test current, voltage drop across the ground path and mΩ resistance of ground path.

• Unit as 3 1/2 digit Digital Voltmeter, Ammeter and milli Ohm meter

• LEDs are used to indicate the Test Pass and for Test Fail

• Power ON / OFF by toggle switch
