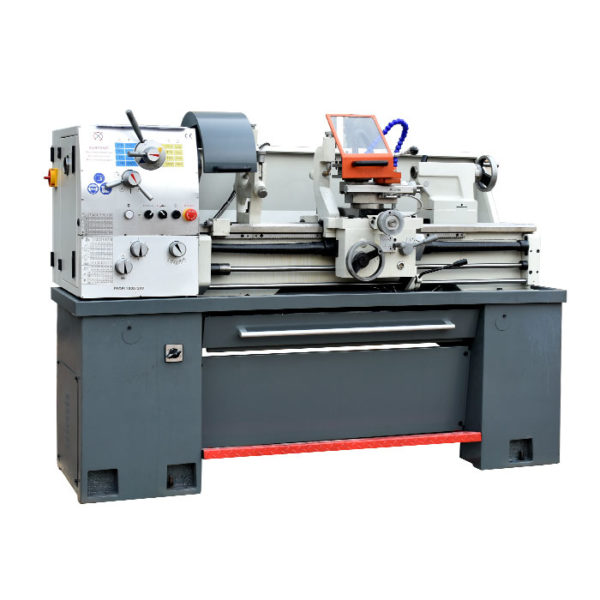

WMT CNC GH1440A 台式铣床 (1.5/2.4KW)

Max. swing over bed: 356mm

Max.swing over cross slide: 220mm

Max.swing in gap: 506mm

Max.length of workpiece: 1000mm

Width of bed: 206mm

Spindle speed range: (16 changes)45-1800rpm

Spindle bore: 38mm or 51mm

Spindle nose: D4 or D5

Taper of spindle bore: MT5 or MT6

Center height: 178mm

Cross slide travel: 150mm

Max.section of tool: 16x16mm

Longitudinal feeds range:

        043-0.653mm/rev(Metric lathe)

        0.0012-0.0297in/rev(Inch lathe)

External diameter: 45mm

Max.travel: 100mm

Taper of bore: MT3

Main motor power: 1.5/2.4KW

Coolant pump power: 40W

Packing size(LxWxH): 1950X750X1500mm

Net weight: 700kg

Gross weight: 800kg
