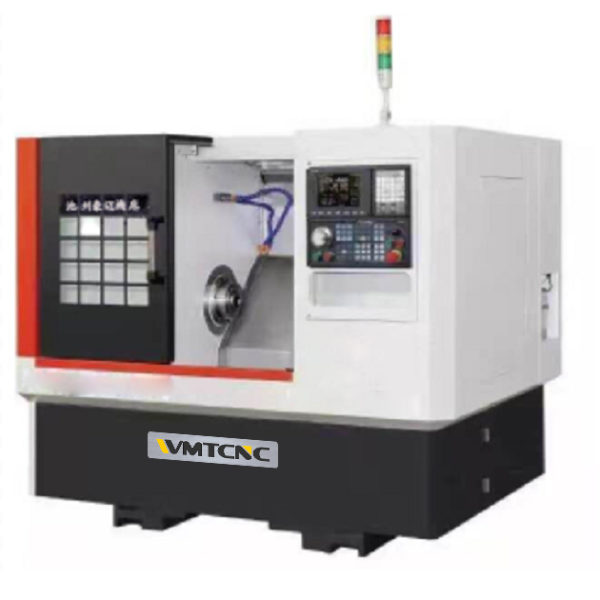

WMT CNC CK6336 斜床数控车床 (400mm)

Max.swing over bed: 400mm

Max.swing over cross slide: 180mm

Max.machining length: 200mm

X/Z axis travel: 400/300mm

Spindle unit: 140mm

Spindle nose: A2-5

Spindle bore: 48mm

Max.spindle speed: 4000rpm

Chuck size: 6″

Spindle motor power: 3.7kw

X/Z axis repeatability: ±0.003mm

X/Z axis feed motor torque: 6/6N.m

X/Z rapid traverse: 18/15m/min

Cutting tool shape size: 20x20mm

Guide form: 45 degree

Total power capacity: 9/11KVA

Machine dimension(LxWxH): 2200x1530x1780mm

Heavy weight: 2200kg
