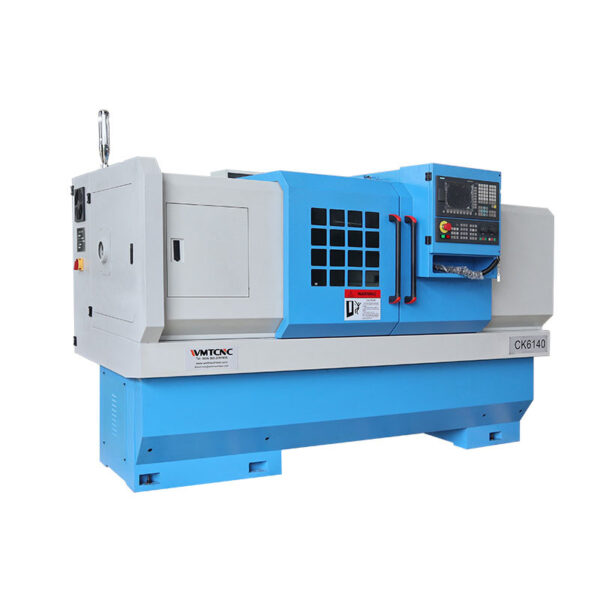

WMT CNC CK6140 平板数控铣床 (400mm)

Max. swing over bed: Φ400mm

Max. swing over carriage: Φ240mm

Max length of work piece: 750/1000/1500mm

Rail width: 330mm

Range of spindle speed: 150-2000rpm or 60-600/280-2000rpm with 2 steps

Stations of tool post: 4/6/8 position

Spindle bore: Φ60mm

Taper of spindle bore: MT6

X-rapid speed: 6m/min

Z-rapid speed: 8m/min

Width of guide way: 330mm

X-axis travel: 250mm

Z-axis travel: 1000/1500mm

Max size of tool post: 25×25mm

Taper of tail stock: MT4

Max range of tail stock quill: 120mm

Power of main motor: 5.5kw

Packing size(LxWxH): 2420/2740/3240×1620×2100mm

Net weight: 1700kg/2100kg
