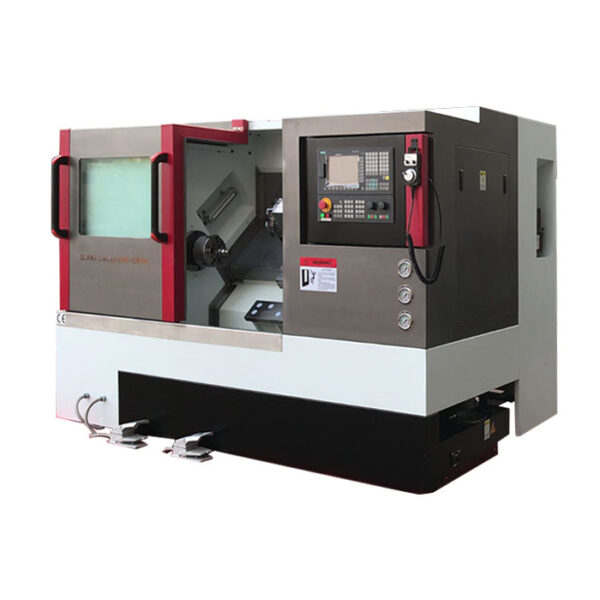

WMT CNC CK36L 斜床数控铣床 (360mm)

Max. swing over bed: φ360mm

Max. swing over carriage: φ210mm

Max. cutting length: 500/750mm

Rail width: 284mm

Spindle nose: A2-5,A2-6

Spindle bore: φ56mm,(62mm)

Taper of spindle bore: 1:20

Chuck: 6″ , (8″)

Range of spindle speed: 150-4200rpm

X axis travel: 210mm

Z axis travel: 500/750mm

X/Z rapid speed: 20/20m/min

Hydraulic turret: 8

Max. section of tool: 20*20mm

Stroke of tailstock sleeve: 80mm

Diameter/ Hole of tailstock sleeve: φ60mm/MT4

Main motor power: 5.5KW/7.5KW

Coolant pump power: 370W

Overall dimensions (L*W*H): 2630/2910*1550*1750mm

Packing size (L*W*H): 2830/3130*1750*2150mm

N.W/G.W: 2700KG/3000KG
