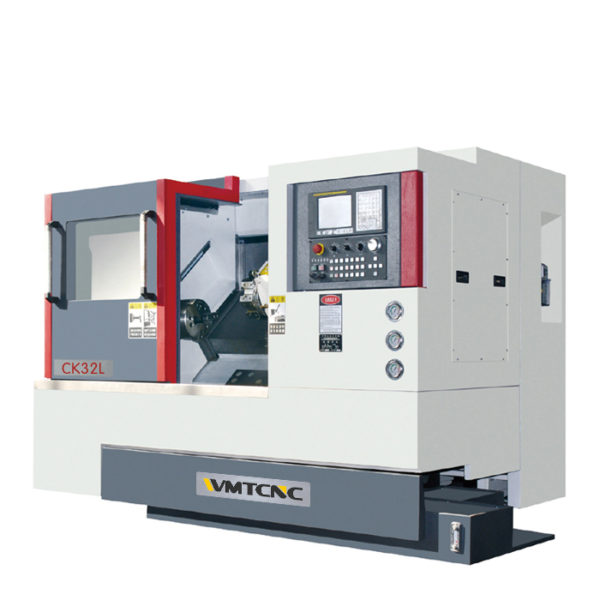

WMT CNC CK32L 斜床数控铣床 (320mm)

Max.swing over bed: Ф320mm

Max.swing over carriage: Ф180mm

Max. cutting length: 450mm

Rail width: 284mm

Spindle nose: A2-5

Spindle bore: Ф56mm

Taper of spindle bore: 1:20

Chuck size: 6″

Range of spindle speed: 150-4200rpm

X-axis travel: 190mm

Z-axis travel: 450mm

X/Z rapid speed: 20/20m/min

Electronic turret: 8

Stroke of tailstock sleeve: 80mm

Diameter/Hole of tailstock sleeve: Ф60mm/MT4

Main motor power: 4kW (optiona:5.5kw)

Coolant pump power: 370w

Overall dimensions (L x W x H): 2300x1550x1750mm

Packing size (L x W x H): 2500x1750x2000mm

Net weight: 2200kg

Gross weight: 2600kg
