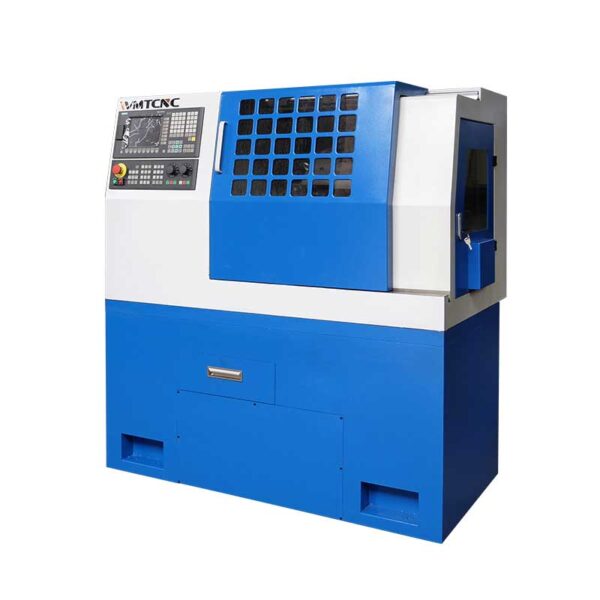

WMT CNC CK30L/400 斜床数控车床

Max. swing over bed: 300mm

Max. swing over carriage: 100mm

Distance between centers: 400mm

Chuck size: 125mm

Spindle speed: 100-3000r/min

Spindle bore: 20mm

Spindle taper: MT3

Spindle power: 1500W

X axis travel: 120mm

Z axis travel: 320mm

Max. rapid speed: 5000mm/min

Max. feed speed: 1000mm/min

Feed motor: 400w

Position of toolpost: 8

Tailstock taper: MT2

Tailstock dia.: 30mm

Tailstock travel: 50mm

Positioning accuracy: 0.010mm

Voltage: 230/110V

N.W/G.W: 620kg/700kg

Machine size (LxWxH): 1400×770×1600mm

Packing size (LxWxH): 1650×1090×1920mm
