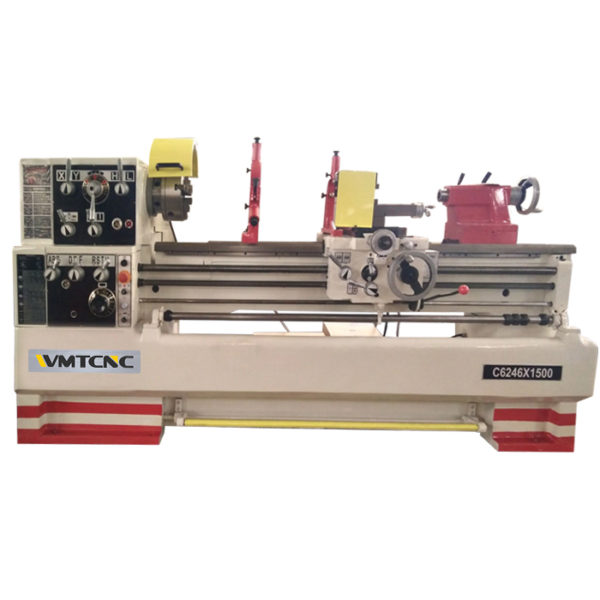

WMT CNC C6246 动力万能铣床 (5.5kw)

Swing over bed: 460mm

Swing over cross slide: 270mm

Swing in gap: 690mm

Length of gap: 165mm

Distance between centers: 1000mm /1500mm/2000mm/3000mm

Width of bed: 300mm

Spindle nose: D1-6

Spindle bore: 58mm

Taper of spindle bore: MT6

Range of spindle speed: 12 changes 25-2000r/min

Max.travel of cross slide: 285mm

Leadscrew thread pitch: 6mm or 4T.P.I.

Max.Section of tool: 25×25mm

Longitudinal feeds range: 42 kinds,0.031-1.7mm/rev

Cross feeds range: 42 kinds, 0.014-0.784mm/rev

Inch threads range: 60 kinds, 2-112T.P.I.

Tailstock quill diameter: Φ60mm

Tailstock quill travel: 128mm

Tailstock quill taper: MT4

Power of main motor: 5.5kw(7.5HP) 3PH

Power of coolant pump: 0.1kw(1/8HP) 3PH

Overall dimension: 2200/2750/3250×1080×1370mm

Packing size: 2250/2800/3300×1120×1620mm

Net weight: 1670/1920/2070kgs

Gross weight: 1980/2265/2450kgs

Details
