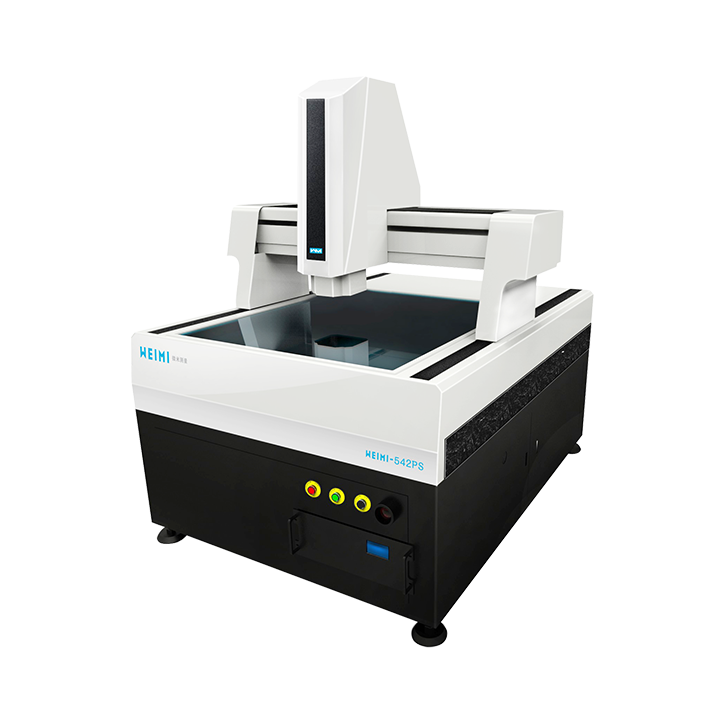

Weimi WEIMI642PS 龙门式大行程二次成像仪 (600/500/200 mm)

Dimension(L*W*H): 1350*1100*1920 mm

Measuring range (Y/X/Z): 600/500/200 mm

Workbench

   Working desk: 760*660 mm

   Glass surface: 660*560 mm

   Load-bearing: 50 kg

Total weight: 1100 kg

Image measurement and measurement system

   CCD: Weimi20 1/3 inch color high resolution camera 520TV line (optional)

   Zoom lens: 0.7-4.5X

   Video zoom: 30-225X

   Object field of view: 10.6-1.6 mm

   Working distance: 90 mm

Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200 Z, Accuracy ≤4+L/50 ("L" refers to the measured object l.ength in mm)

Repeatability: ≤0.003mm

Positioning accuracy: 0.001mm

Illumination: LED surface light, brightness adjustable

Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)

Power supply: 220V±10% (AC) 50Hz

Machine credit: 1850W
