WaveNode WN-2m 瓦特计

Frequency Range: Thruline sensor selection from 100 kHz- 1.3 GHz. (See Thruline sensor selection for complete details).

Connectors

Control box two sensor inputs (minidin 6 pin).

Sensor SO-239 or N-type connectors (specify when ordering).

USB type connector for PC interface.

Computer Requirements:

PC running Microsoft OS XP, 7, 8, or 10.

USB port.

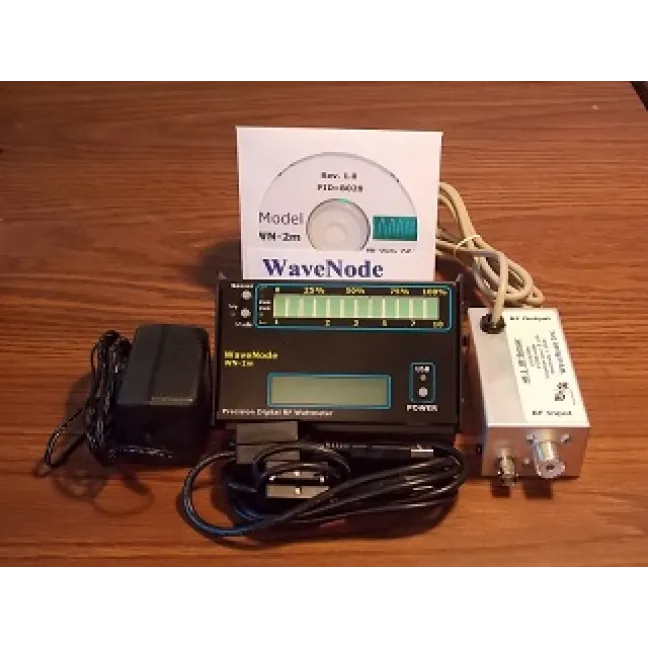

Standard System Includes:

Wattmeter Control/Display unit.

One RF sensor (specify when ordering)

CDROM (software and USB driver)

Wall transformer (120 ar 220/240 operation)

USB cable with ferrite cores

Standalone Display: Peak, Average power and SWR

Measurement Accuracy: +/- 5%

Power Requirements: 11-16 VDC @ 350 ma. (With included power supply or from station +12 VDC supply)

Main features

Software modulation Oscilloscope and Spectrum Analyzer.

Tone generator, four analog inputs, four digital inputs and four digital outputs

Simultaneous/synchronous detection of forward and reflected power and SWR on all four sensors.

Voice and Tone announcing of power and SWR for visually impaired operation.

Dimensions:

Display Unit: 134 mm wide X 46 mm deep X 87mm high. (include removable rubber feet)

Sensors: 102mm long X 39mm deep X 86mm high.

Options: Sensor RF View port for external monitoring.
