Frequency Range: Thruline sensor selection from 100 kHz- 1.3 GHz. (See Thruline sensor selection for complete details).
Control box two sensor inputs (minidin 6 pin).
Sensor SO-239 or N-type connectors (specify when ordering).
USB type connector for PC interface.
SWR Protection Relay with N/O and N/C contacts
PC running Microsoft OS XP, 7, 8, or 10.
Standard System Includes:

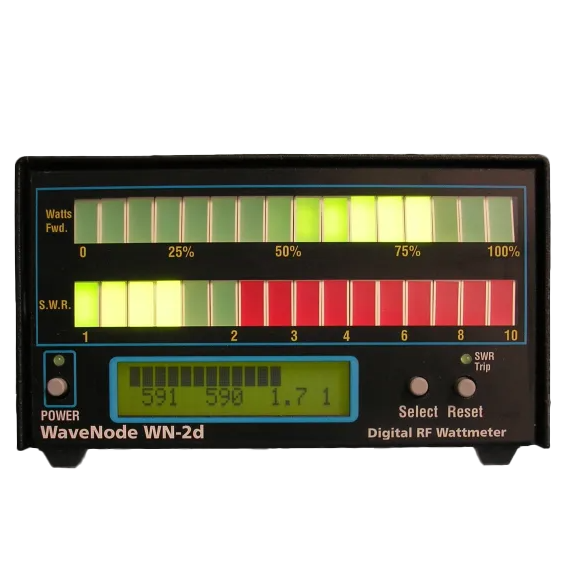

Wattmeter Control/Display unit.
One RF sensor (specify when ordering)
CDROM (software and USB driver)
Wall transformer (120 ar 220/240 operation)
USB cable with ferrite cores
Standalone Display: Peak, Average power and SWR
Measurement Accuracy: +/- 5%
Power Requirements: 11-16 VDC @ 350 ma. (With included power supply or from station +12 VDC supply)
SWR Protection Relay (user selectable ports and levels)
Software modulation Oscilloscope and Spectrum Analyzer.
Tone generator, four analog inputs, four digital inputs and four digital outputs
Simultaneous/synchronous detection of forward and reflected power and SWR on all four sensors.
Voice and Tone announcing of power and SWR for visually impaired operation.
Display Unit: 147 mm wide X 100 mm deep X 62mm high
Sensors: 102mm long X 39mm deep X 86mm high.
RT1/2 Yaesu Rotator Controller
Sensor RFView port for external monitoring
