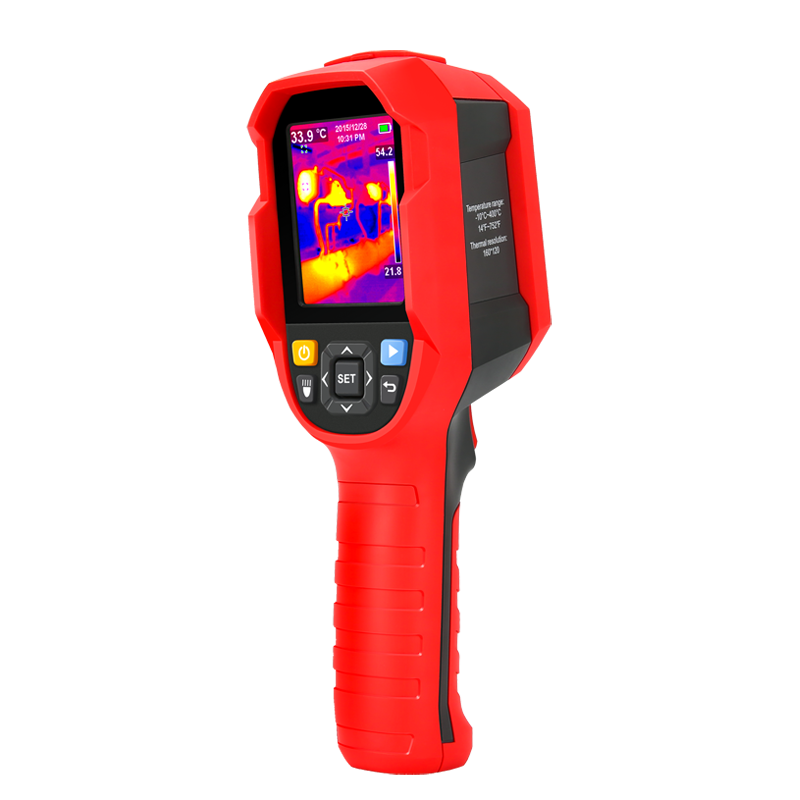

UNI-T UTi165A+ 重型热像仪 ( 160×120, -10°C~400°C, 6mrad)

Technical Data

IR resolution (Pixels): 160×120

Display: 2.8” TFT LCD (320×240)

Field of view(FOV): 56°×42°

Thermal sensitivity(NETD): ≤50mk

Spatial resolution(IFOV): 6mrad

Frame rate: ≤9Hz

Focus: Focus free

Temperature measurement range:  -10℃~400℃

Accuracy: ±2℃ or ±2% whichever is greater

Emissivity : 0.01~1.00 adjustable(0.95 default)


Color palettes: 5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)

Image modes: Thermal,Visual image,Fusion

Hi/Lo temperature alarm: Icon,LED flashlight

PC software analysis: Yes

General Characteristics

Battery: Fixed Li-ion battery (3.6V 5000mAh)

Battery operation time: ≥ 6 hours

USB: Type-C

IP rating: IP65

Drop proof: 2m

Storage: Up to 32GB Micro SD card

Image/Video storage format: BMP

Certificates: CE,RoHS

Product net weight: 910g

Product size: 236mm×75.5mm×86mm

Packing Details

Standard accessories: Micro SD card, Type-C USB cable, Adapter, English manual
