TvbTech 3199F-14 下水道排水管检查摄像系统 (40m 电缆, 752Hx 582V pixels, Φ14mm)

Camera Head

- Camera Size: Φ14mm×125mm (Main body Φ14×125mm)

- Camera Total Length: 125mm (include spring)

- Sensor: 1/4" CMOS, 400 TV-Line

- Pixel: 688H x 488V

- View Angle: 82°

- Focus Distance: 10cm (approx)

- Depth-of-Field: 20cm(approx)

- Front Lens: Sapphire glass

- Water-Proof: 10m Under Water(Camera fix on Cable)

- Shell Material: Stainless steel

- Lighting: Built-in 4×LED(White)

- Operating Temperature: -10~50℃/+14~+122℉

- Storage Temperature: -20~60℃/+4~+140℉

Cable Wheel

- 40m fiberglass rod cable with on-screen distance counter

- Dia. of push cable: 4.8mm

- Material of cable: Fiberglass covered by PP

- Operation: Mounted and rotatable in the case

LCD Monitor

- Screen: 7-inch 16:9 Super bright HD color LCD screen

- Resolution: 800x480 RGB

- Mirror and Flip: support image mirror, and flip

- Video Resolution: 720*576 25fps Max.

- Video Encoding: H.264

- Photograph: 720*480

- Audio Recording: local sound record

- Output: video output

- External memory: support SD memory card up to 32GB

- Data output: USB 2.0 to PC

- Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses

Battery Pack

- Power Input: DC 9V-12V

- Battery Capacity: 7.4V 6600mAh Rechargeable Li-on Battery

- Power Output: 6-12V DC, USB 5V

- Work/Charge time: 8 hours

Tool Box

- Size: 517 x 434 x 200mm (LxWxH)

- Box Color: Black or Yellow (selectable)

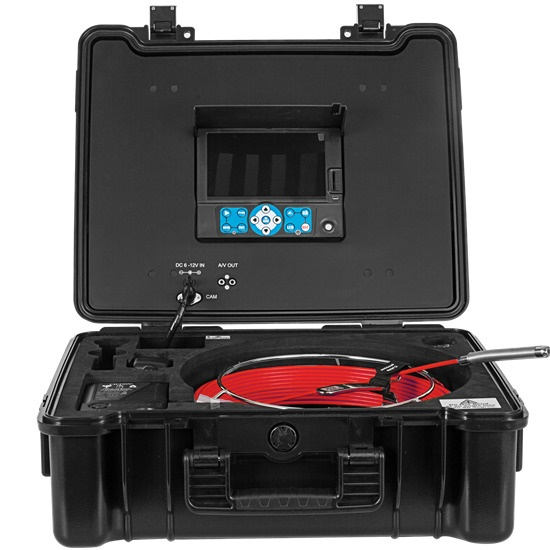

Including

- 1 x 14mm Camera head

- 1 x 40m cable wheel

- 1 x battery pack

- 1 x remote control

- 1 x screw driver

- 1 x power adapter

- 1 x car charger

- 1 x waterproof suit case with monitor mounted

Optional Functions

- Text input on screen by using a wireless keyboard (wireless keyboard included)

- Built-in 512Hz Sonde
