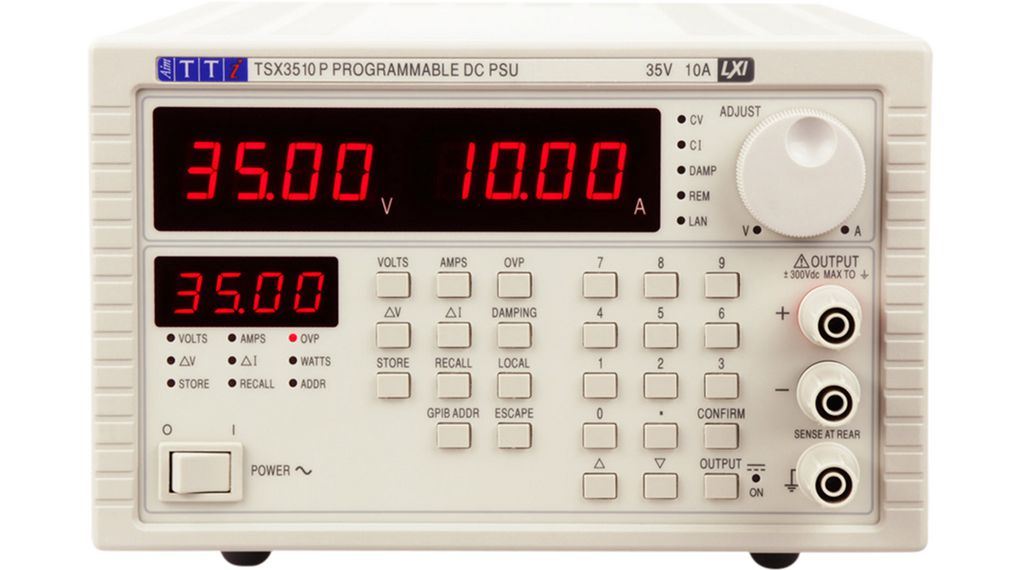

TTI TSX3510P 可编程直流电源 (0~35V, 0~10A, 350W, RS232/GPIB)

  • 制造商:TTI
    Model: TSX3510P
    来源: United Kingdom
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Operating modes: Constant voltage or constant current with
automatic crossover.
Voltage range: 0V to 35V (TSX3510/TSX3510P).
0V to 18V (TSX1820/TSX1820P).
Current range: 0A to 10A (TSX3510/TSX3510P).
0A to 20A (TSX1820/TSX1820P).
Overvoltage protection: 10% to 110% of max. output voltage.
Setting resolution: 10mV, 10mA.
Load regulation: <0.01% of max. O/P for 90% change.
Line regulation: <0.01% of max. O/P for 10% change.
Output impedance: <1m in="" constant="" voltage="" mode="" br=""> >5k in constant current mode.
Ripple & noise: <1mv rms="" typical="" in="" constant="" voltage="" br=""> <3ma rms="" typical="" in="" constant="" current="" br=""> HF common mode noise: Typically <3mv rms="" 10mv="" pk="" br=""> Transient load response: <20us to="" within="" 50mv="" of="" set="" level="" for="" br=""> 90% load change.
Temperature coefficient: typically <100ppm/o
C.
Overvoltage protection
delay: <200us.
Protection functions: Overvoltage trip
Regulator overtemperature
Sense miswiring.
Status indication: Output On lamp
Constant voltage mode lamp
Constant current mode lamp
Trip message on display.
Output terminals: 4mm output terminals at front, screw terminals
for output and sense at rear.
Output protection: Full forward and reverse protection via
OVP and diode clamp.
Meter types: Separate 4 digit meters for voltage and
current with 12.5mm (0.5") LED displays.
Meter resolutions: 10mV, 10mA.
Meter accuracies: Voltage ±(0.2% + 1 digit)
Current ±(0.5% + 1 digit).
GENERAL
Input voltage range: 220V to 240 volts ± 10% or 110 to 120
volts ± 10%, 47 to 63Hz.
Installation Category II.
Power requirement: 600VA max.
Electrical safety: Complies with EN61010-1.
EMC: Complies with EN61326.
Temperature: +5o
C to +40o
C operating, 20% to 80%
RH, -40o
C to +70o
C storage.
Cooling: Silent fan-less convection cooling.
Size: 210 x 130 x 350mm (WxHxD)
(half rack width x 3U height).
Weight: 5.0kg (TSX versions).
5.5kg (TSX-P versions).
Options: Rack Mounting kit
