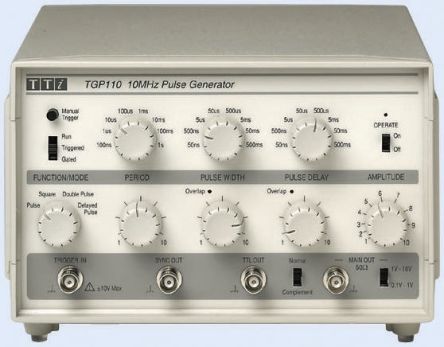

TTI TGP110 脉冲信号发生器 (10MHz)

● 0.1Hz to 10MHz frequency range
● 50ns minimum pulse width; fully variable pulse delay
● Squarewave, double pulse and delayed pulse modes
● Free-run, gated and triggered modes
● 50  output, variable 0.1V to 10V; TTL and sync outputs

Power: 230V or 115V AC nominal 50/60Hz, adjustable internally;
operating range ±14% of nominal; 20VA max.
Size: 140 x 220 x 230mm (HxWxD)
Weight: 1.6kg (3.5lb)
Operating Range: + 5°C to 40°C, 20-80% RH.
Storage Range: - 40°C to 70°C
Safety: Complies with EN61010-1.
EMC: Complies with EN55081-1 and EN50082-1.

Detail

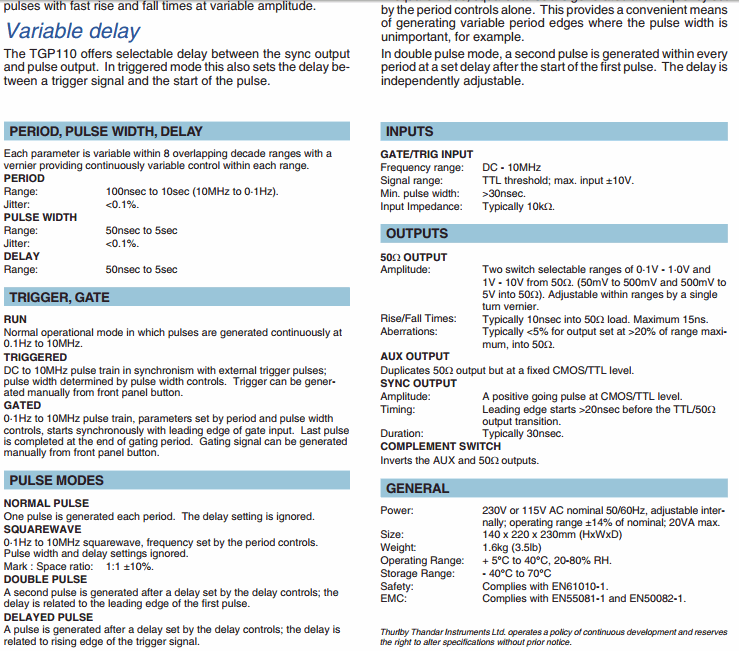

Datasheet
