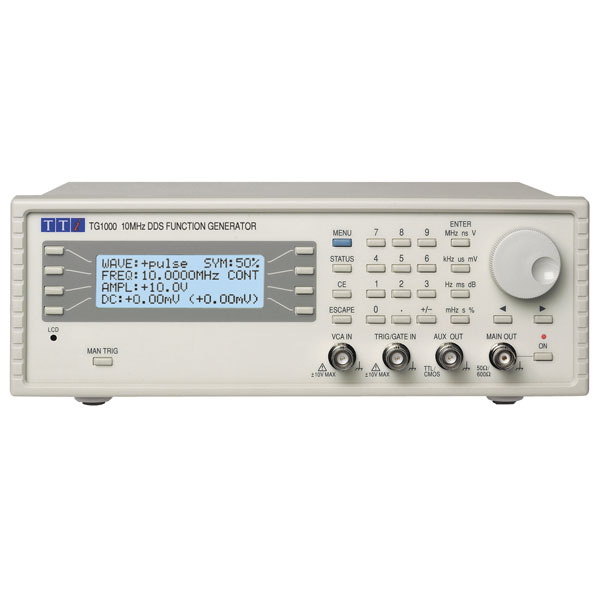

TTI TG1000 函数发生器

FREQUENCY

All waveforms are derived from a crystal clock using Direct Digital Synthesis.

Frequency Range: 1mHz to 10MHz (TG1000) or 20MHz (TG2000)

Resolution: 6 digits or 1mHz

Accuracy: ±10ppm for 1 year, 18oC to 28oC; ±1mHz below 0.2Hz

Tempco.: Typically <1ppm/oC outside of 18oC to 28oC

WAVEFORMS

Sinewave

Range: 1mHz to 10MHz/20MHz

Resolution: 6 digits or 1mHz

Distortion: <0.3% THD to 20kHz (typically 0.1%), <-45dbc to="" br=""> 300kHz, <-35dbc to="" 20mhz="" typically="" -40dbc="" br=""> Spurii: Non harmonically related spurii <-55dbc to="" 1mhz="" br=""> <(-55dBc + 6dB/octave) 1MHz to 20MHz

Output Level: 5mV to 20V pk-pk from 50 or 600

Squarewave

Range: 1mHz to 10MHz/20MHz

Resolution: 6 digits or 1mHz

Symmetry: variable 20% to 80% in 1% steps

Aberrations: <5% + 2mV

Rise & Fall Times: <22ns

Output Level: 5mV to 20V pk-pk from 50 or 600

Triangle

Range: 1mHz to 1MHz

Resolution: 6 digits or 1mHz

Linearity error: <0.5% to 100kHz

Output Level: 5mV to 20V pk-pk from 50 or 600

Positive and Negative Pulse

Range: 1mHz to 10MHz/20MHz

Resolution: 6 digits or 1mHz

Symmetry: variable 20% to 80% in 1% steps

Aberrations: <5% + 2mV

Rise & Fall Times: <22ns

Output Level: 2.5mV to 10V pk-pk from 50/600 positive or negative

only pulses with respect to the DC Offset baseline

MODULATION MODES

Continuous

Continuous cycles of the selected waveform are output at the selected frequency.

Gated

Non phase-coherent signal keying - output is On while Gate signal is high and Off while low.

Carrier frequency: From 0.1Hz to 10MHz/20MHz

Carrier waveforms: All

Trigger rep. rate: dc to 100kHz external, dc to 5kHz internal

Gate source: Front panel MAN TRIG key, Internal Gate Generator,

TRIG/GATE input, or Remote Interface

Sweep

Carrier waveforms: All

Sweep Mode: Linear or logarithmic, single or continuous

Sweep Width: 0.2Hz to 10MHz/20MHz in one range. Phase continuous.

Independent setting of the start and stop frequency

Sweep Time: 50ms to 999s (3 digit resolution)

Markers: Available from AUX output. Variable during sweep

Sweep Trigger

source:

The sweep may be free run or triggered from: front panel

MAN TRIG key, TRIG/GATE input, or Remote Interface

Amplitude Modulation

Carrier frequency: 1mHz to 10MHz/20MHz

Carrier waveforms: All

Modulation source: VCA IN socket

Frequency Shift Keying (FSK)

Phase coherent switching between two selected frequencies at a rate defined by the

switching signal source.

Carrier frequency: 1Hz to 10MHz/20MHz

Carrier waveforms: All

Switch rate: dc to 5kHz (internal), dc to 1MHz (external)

Switching signal

source:

Front panel MAN TRIG key, Internal Trigger Generator,

TRIG/GATE input, or Remote Interface
