TTI MX180TP 台式可编程直流电源 (2 x 180 w, 1 x 18 watts, USB, RS232, LAN)

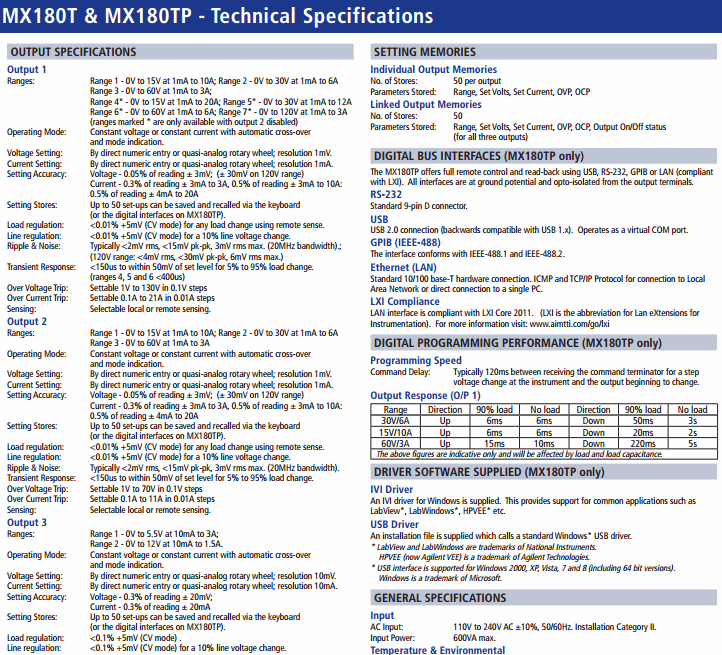

OUTPUT SPECIFICATIONS

Output 1

Ranges: Range 1 - 0V to 15V at 1mA to 10A; Range 2 - 0V to 30V at 1mA to 6A

Range 3 - 0V to 60V at 1mA to 3A;

Range 4* - 0V to 15V at 1mA to 20A; Range 5* - 0V to 30V at 1mA to 12A

Range 6* - 0V to 60V at 1mA to 6A; Range 7* - 0V to 120V at 1mA to 3A

(ranges marked * are only available with output 2 disabled)

Operating Mode: Constant voltage or constant current with automatic cross-over

and mode indication.

Voltage Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 1mV.

Current Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 1mA.

Setting Accuracy: Voltage - 0.05% of reading ± 3mV; (± 30mV on 120V range)

Current - 0.3% of reading ± 3mA to 3A, 0.5% of reading ± 3mA to 10A:

0.5% of reading ± 4mA to 20A

Setting Stores: Up to 50 set-ups can be saved and recalled via the keyboard

(or the digital interfaces on MX180TP).

Load regulation: <0.01% +5mV (CV mode) for any load change using remote sense.

Line regulation: <0.01% +5mV (CV mode) for a 10% line voltage change.

Ripple & Noise: Typically <2mv rms="" 15mv="" pk-pk="" 3mv="" rms="" max="" 20mhz="" bandwidth="" br=""> (120V range: <4mv rms="" 30mv="" pk-pk="" 6mv="" rms="" max="" br=""> Transient Response: <150us to="" within="" 50mv="" of="" set="" level="" for="" 5="" to="" 95="" load="" change="" br=""> (ranges 4, 5 and 6 <400us)

Over Voltage Trip: Settable 1V to 130V in 0.1V steps

Over Current Trip: Settable 0.1A to 21A in 0.01A steps

Sensing: Selectable local or remote sensing.

Output 2

Ranges: Range 1 - 0V to 15V at 1mA to 10A; Range 2 - 0V to 30V at 1mA to 6A

Range 3 - 0V to 60V at 1mA to 3A

Operating Mode: Constant voltage or constant current with automatic cross-over

and mode indication.

Voltage Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 1mV.

Current Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 1mA.

Setting Accuracy: Voltage - 0.05% of reading ± 3mV; (± 30mV on 120V range)

Current - 0.3% of reading ± 3mA to 3A, 0.5% of reading ± 3mA to 10A:

0.5% of reading ± 4mA to 20A

Setting Stores: Up to 50 set-ups can be saved and recalled via the keyboard

(or the digital interfaces on MX180TP).

Load regulation: <0.01% +5mV (CV mode) for any load change using remote sense.

Line regulation: <0.01% +5mV (CV mode) for a 10% line voltage change.

Ripple & Noise: Typically <2mv rms="" 15mv="" pk-pk="" 3mv="" rms="" max="" 20mhz="" bandwidth="" br=""> Transient Response: <150us to="" within="" 50mv="" of="" set="" level="" for="" 5="" to="" 95="" load="" change="" br=""> Over Voltage Trip: Settable 1V to 70V in 0.1V steps

Over Current Trip: Settable 0.1A to 11A in 0.01A steps

Sensing: Selectable local or remote sensing.

Output 3

Ranges: Range 1 - 0V to 5.5V at 10mA to 3A;

Range 2 - 0V to 12V at 10mA to 1.5A.

Operating Mode: Constant voltage or constant current with automatic cross-over

and mode indication.

Voltage Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 10mV.

Current Setting: By direct numeric entry or quasi-analog rotary wheel; resolution 10mA.

Setting Accuracy: Voltage - 0.3% of reading ± 20mV;

Current - 0.3% of reading ± 20mA

Setting Stores: Up to 50 set-ups can be saved and recalled via the keyboard

(or the digital interfaces on MX180TP).

Load regulation: <0.1% +5mV (CV mode) .

Line regulation: <0.1% +5mV (CV mode) for a 10% line voltage change.

Ripple & Noise: Typically <2mv rms="" 15mv="" pk-pk="" 3mv="" rms="" max="" 20mhz="" bandwidth="" br=""> Transient Response: <150us to="" within="" 50mv="" of="" set="" level="" for="" 5="" to="" 95="" load="" change="" br=""> Over Voltage Trip: Settable 1V to 14V in 0.1V steps

Over Current Trip: Settable 0.1A to 3.5A in 0.01A steps

Sensing: Selectable local or remote sensing.

Output Protection

External Voltage: Output will withstand forward voltages of up to 140V (O/P 1), 70V (O/P 2)

 or 20V (O/P 3). Reverse protection by diode clamp, 3A max..

Fault Trip: The output will be shut down if a trip conditions listed below occurs.

OVP or OCP Exceeding over-voltage or over-current settings for the output.

Over Temperature: Monitors internal temperature rise to protect against excess ambient

temperature or blocked ventilation slots.

Connection

Output Terminals: Universal 4mm safety binding posts on 19mm (0·75”) spacing at front.

Screw terminals at rear (MX180TP only).

Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals and bare wires.

Sense Terminals: Sprung loaded screw-less terminals at front.

Screw terminals at rear (MX180TP only).

OUTPUT ON/OFF SWITCHING

Individual On/Off: Individual keys for each output. On state indicated by key illumination.

Multi-On/Multi-Off: Separate keys enable any combination of outputs to be turned on or off

either simultaneously (default) or with timed delays from 10ms and 20s.

Delayed operation indicated by flashing key illumination.

VOLTAGE TRACKING

The power supply can be set so that the voltage of output two is automatically set equal to that of

output one and tracks any changes. The outputs remain isolated.

METERING (each Output)

Meter Function: 5 digit voltage and current meters (O/P 1 and O/P 2), 3.5 digit voltage and

current meters (O/P 3). Simultaneous display of actual and set values.

Meter Resolution: 1mV/1mA (O/P 1 and O/P 2), 10mV/10mA (O/P 3).

Meter Accuracy: As per setting accuracy (CV mode).

Additional Metering Functions

V x A Calculated power in watts. Resolution 0.01W. Accuracy 0·5% ± 3 digits

Input

AC Input: 110V to 240V AC ±10%, 50/60Hz. Installation Category II.

Input Power: 600VA max.

Temperature & Environmental

Operating Range: +5ºC to +40ºC, 20% to 80% RH

Storage Range: -40ºC to + 70ºC

Environmental: Indoor use at altitudes up to 2000m, Pollution Degree 2.

Cooling: Intelligent variable-speed fans.

Safety & EMC

Safety: Complies with EN61010-1

EMC: Complies with EN61326

Physical

Size: 212 x 130 x 375mm (WxHxD) (half rack x 3U height) .

Weight: 5.0kg (MX180T); 5.1kg (MX180TP).

GPIB interfaces: no, this feature has been discontinued
