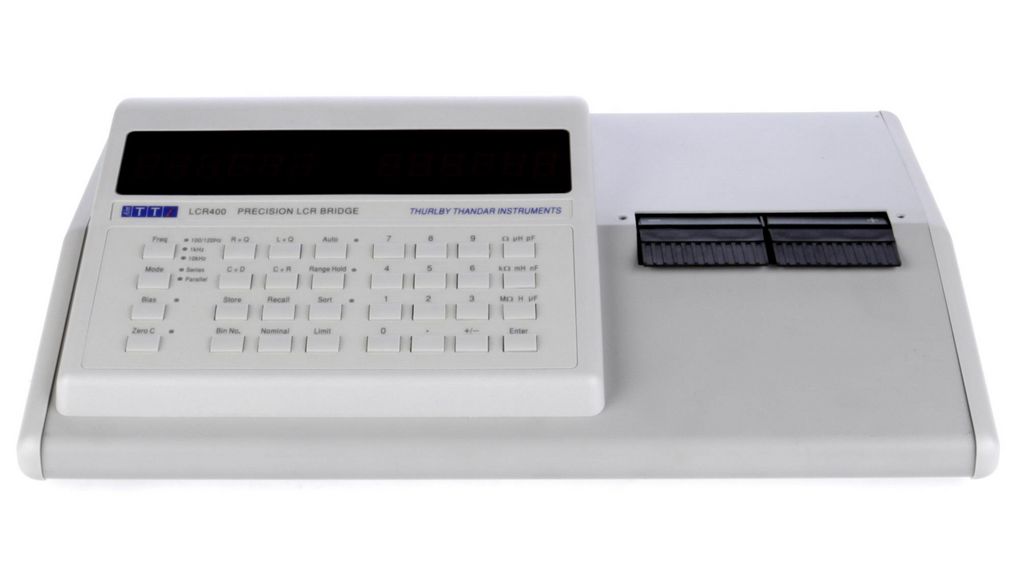

TTI LCR400 台式LCR表 (10kHz)

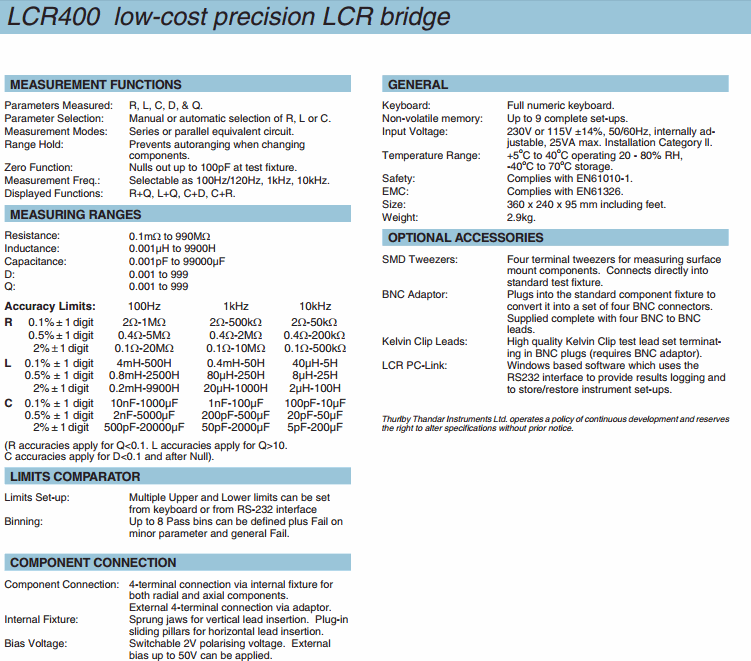

MEASUREMENT FUNCTIONS
Parameters Measured: R, L, C, D, & Q.
Parameter Selection: Manual or automatic selection of R, L or C.
Measurement Modes: Series or parallel equivalent circuit.
Range Hold: Prevents autoranging when changing
components.
Zero Function: Nulls out up to 100pF at test fixture.
Measurement Freq.: Selectable as 100Hz/120Hz, 1kHz, 10kHz.
Displayed Functions: R+Q, L+Q, C+D, C+R.
MEASURING RANGES
Resistance: 0.1m to 990M
Inductance: 0.001µH to 9900H
Capacitance: 0.001pF to 99000µF
D: 0.001 to 999
Q: 0.001 to 999
Accuracy Limits: 100Hz 1kHz 10kHz
R 0.1% ± 1 digit 2-1M 2-500k 2-50k
0.5% ± 1 digit 0.4-5M 0.4-2M 0.4-200k
2%  1 digit 0.1-20M 0.1-10M 0.1-500k
L 0.1% ± 1 digit 4mH-500H 0.4mH-50H 40µH-5H
0.5% ± 1 digit 0.8mH-2500H 80µH-250H 8µH-25H
2% ± 1 digit 0.2mH-9900H 20µH-1000H 2µH-100H
C 0.1% ± 1 digit 10nF-1000µF 1nF-100µF 100pF-10µF
0.5% ± 1 digit 2nF-5000µF 200pF-500µF 20pF-50µF
2% ± 1 digit 500pF-20000µF 50pF-2000µF 5pF-200µF
(R accuracies apply for Q<0.1. l="" accuracies="" apply="" for="" q="">10.
C accuracies apply for D<0.1 and="" after="" null="" br=""> LIMITS COMPARATOR
GENERAL
Keyboard: Full numeric keyboard.
Non-volatile memory: Up to 9 complete set-ups.
Input Voltage: 230V or 115V ±14%, 50/60Hz, internally adjustable,
25VA max. Installation Category ll.
Temperature Range: +5o
C to 40o
C operating 20 - 80% RH,
-40o
C to 70o
C storage.
Safety: Complies with EN61010-1.
EMC: Complies with EN61326.
Size: 360 x 240 x 95 mm including feet.
Weight: 2.9kg.
