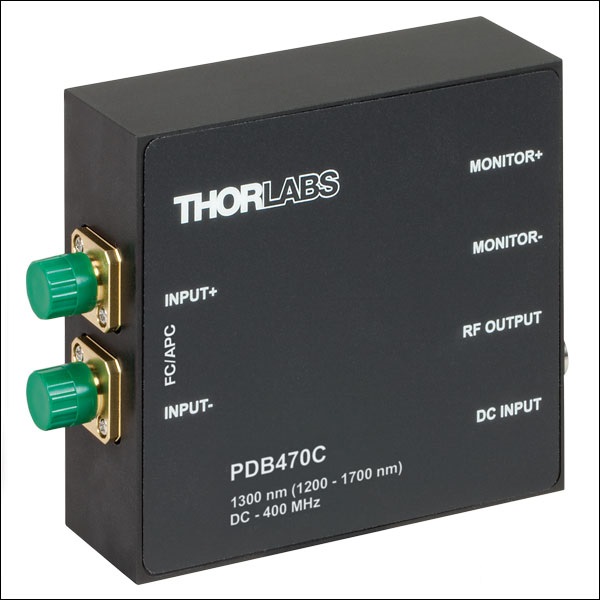

THORLABS PDB470C-AC 光纤耦合平衡放大器 (400 MHz, InGaAs, 1300 nm, AC Coupled)

Detector

Detector Type: InGaAs/PIN

Optical Inputs: FC/APC

Internal Coupling Fiber: SMF-28e+

Coupling Loss: <0.5 dB (<0.3 dB Typ.)

Operating Wavelength: Optimized for 1300 nm (1200 - 1700 nm Range)

Responsivity (Typical): 0.85 A/W @ 1300 nm

Active Detector Diameter: 0.075 mm

Optical Back Reflection: <-40 dB

Photodiode Damage Threshol(d): 10 mW

RF OUTPUT

RF OUTPUT Bandwidth (3 dB): DC - 400 MHz AC Coupled (-AC Suffix): 100 Hz - 400 MHz

Common Mode Rejection Ratio: >25 dB (Typ. >30 dB)

RF OUTPUT Transimpedance Gain: 10 x 10^3 V/A(b)

RF OUTPUT Conversion Gain: 9 x 10^3 V/W @ 1300 nm(b)

RF OUTPUT Power at 1 dB Compression(c): -

RF OUTPUT CW Saturation Power: 420 µW @ 1300 nm

RF OUTPUT Coupling: DC or AC

RF OUTPUT Impedance: 50 Ω

Max Voltage Swing: ±1.9 V for 50 Ω Load ±3.8 V for High-Impedance Load

Minimum NEP(d): 8 pW/Hz^1/2 (DC to 100 MHz)

Overall Output Voltage Noise: <2.0 mVRMS

MONITOR Outputs

MONITOR Output Impedance: 200 Ω

MONITOR Output Bandwidth (3 dB): DC - 3 MHz

MONITOR Output Conversion Gain, High Z Load(b): 9 V/mW @ 1300 nm

MONITOR Output Voltage Swing, High Z Load: 10 V Max

Overall Output Voltage Noise: <0.65 mVRMS

DC Offset: < ±2 mV

General

Electrical Outputs: SMA

Included DC Power Supplye: ±12 V @ 250 mA (100/120/230 VAC, 50 - 60 Hz, Switchable)

Operating Temperature Range(f): 0°C to 40°C

Storage Temperature Range: -40 °C to 70°C

Dimensions (W x H x D): 85 mm x 80 mm x 30 mm (3.35" x 3.15" x 1.18")

Weight: 0.35 kg

(a) All technical data are valid at 23 ± 5°C and 45 ± 15% relative humidity (non-condensing).

(b) Values for transimpedance and conversion gain are lossless gain values [i.e. losses introduced by the FC/APC connectors (typically 0.15 to 0.35 dB) are not considered].

(c) For a 50 Ω load.

(d) For more information on NEP, please see Thorlabs' Noise Equivalent Power White Paper.

(e) A replacement power supply is available below.

(f) Non-Condensing.
