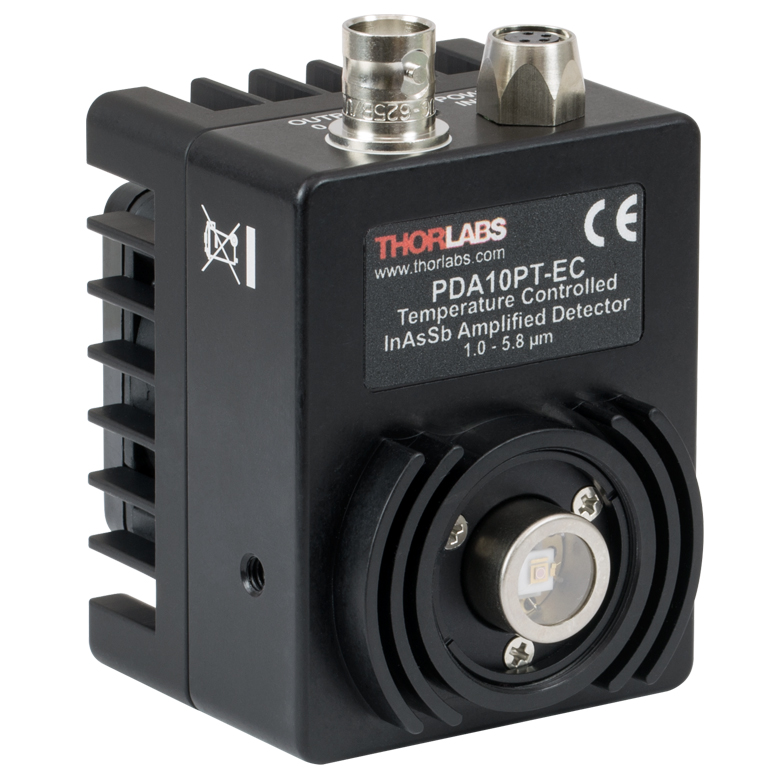

THORLABS PDA10PT-EC Free-Space InAsSb 带TEC的放大探测器 (Ø1 mm, 100 - 240 VAC)

Wavelength Range: 1.0 - 5.8 µm

Peak Wavelength (λP): 4.9 µm

Peak Responsivity: 0.8 A/W (Min) at λP. 1.6 A/W (Typ.) at λP

Active Area: Ø1 mm

Window Material: Sapphire

Gain Settings: 8 Steps: 0, 4, 10, 16, 22, 28, 34, or 40 dB

Bandwidth Settings: 8 Steps from 12.5 kHz to 1600 kHz

Noise-Equivalent Power (NEP): 1.49 x 10^-10 W/Hz^1/2 (for 40 dB Gain and 1600 kHz Bandwidth)

More detailed specifications are available in the manual.
