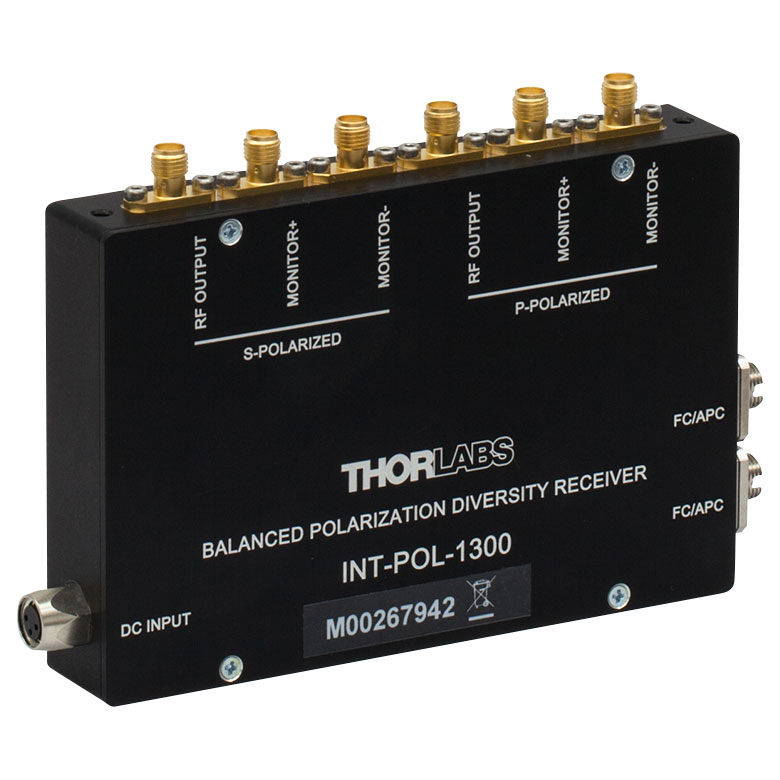

THORLABS INT-POL-1300 偏振相关平衡探测器 (1270 - 1350 nm)

Optical Parameters

Wavelength Range(a): 1270 - 1350 nm

Fiber Type: Corning SMF28

Optical Connectors: FC/APC

Extinction Ratio (PBS): 22 dB

Max. Input Power 1300 nm: 20 mW

Electrical Parameters

Detector Material/Type: InGaAs / PIN

Detector Wavelength Range: 800 - 1700 nm

Typical Max. Responsivity: 1.0 A/W

Output Bandwidth RF Output: DC - 15 MHz

Output Bandwidth Monitor Output: DC - 5 MHz

Transimpedance Gain: 50 x 10³ V/A

Conversion Gain Monitor Outputs: 5 V/mW

Saturation Power: 80 µW @ 1300 nm

Electrical Output /Impedance: SMA, 50 Ω

DC Offset: ±10 mV

Power Supply: ±12 V @ 250 mA (100/120/230 VAC, 50 - 60 Hz, Switchable)

(a) The limitation of the operating wavelength range of the INT-POL-1300 module is determined by the bandwidth of the two polarization beamsplitters used. The central wavelength of these beamsplitters is 1310nm, with a +/-40 nm operating bandwidth. (See the manual supplied for more information).

(b) All accuracy data is valid at 23 ± 5 °C and 45% Humidity
