| 制造商: | Telwin |

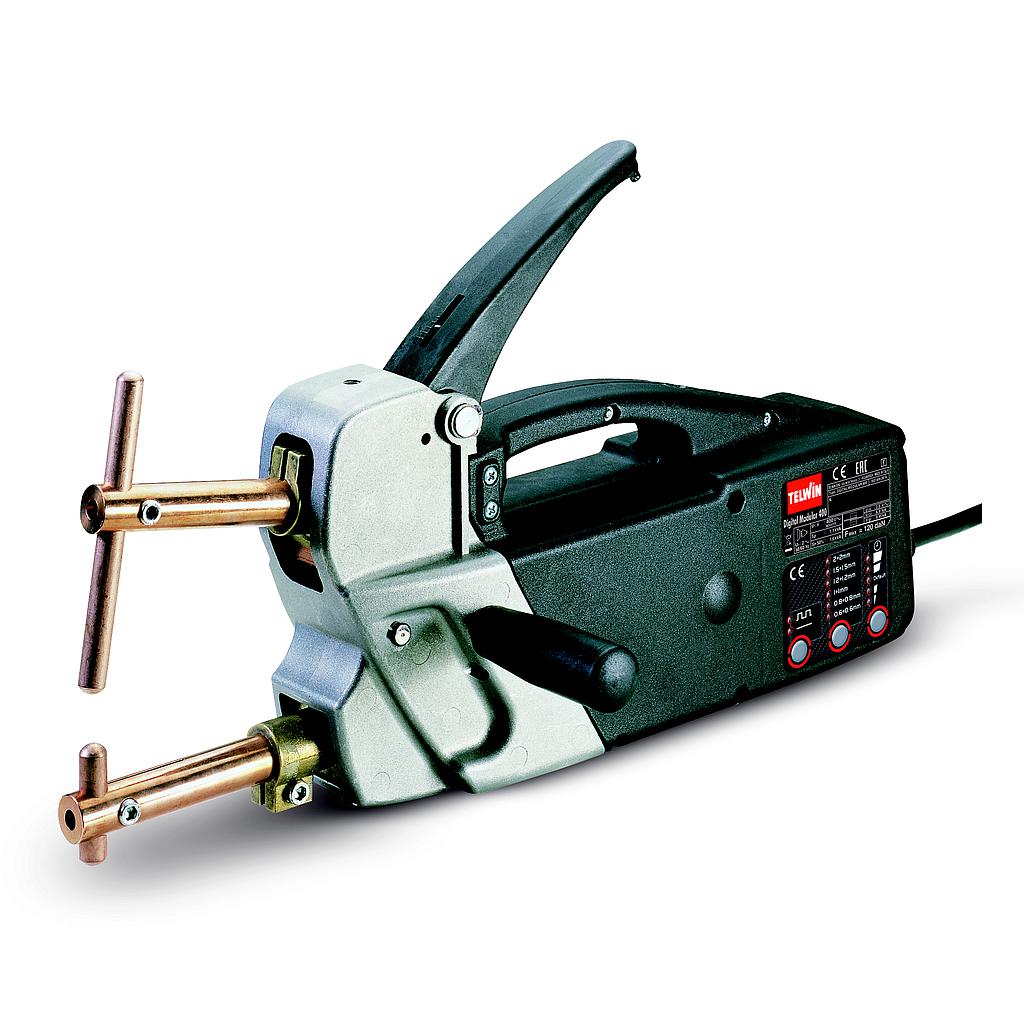

| Model: | DIGITAL MODULAR 400 |
| P/N: | 823017 |
| 来源: | Italy |
MAX ABSORBED POWER: 13 kW
DUTY CYCLE: 1,5 %
DOUBLE PHASE MAINS VOLTAGE: 400 V
RATED POWER: X=50% 2,3 kW
PROTECTION DEGREE: IP20
MAINS FREQUENCY: 50 / 60 Hz
MAINS FUSE: 16 A
DIMENSIONS: 44 x 10 x 18,5 cm
MAX SPOT-WELDING CURRENT: 6900 A
POWER FACTOR (cosphi): 0,9
WEIGHT: 10,3 kg
MAX NO LOAD VOLTAGE: 2,5 V
MAX WELD.THICK. ON 2 SHEETS: 2 + 2mm
