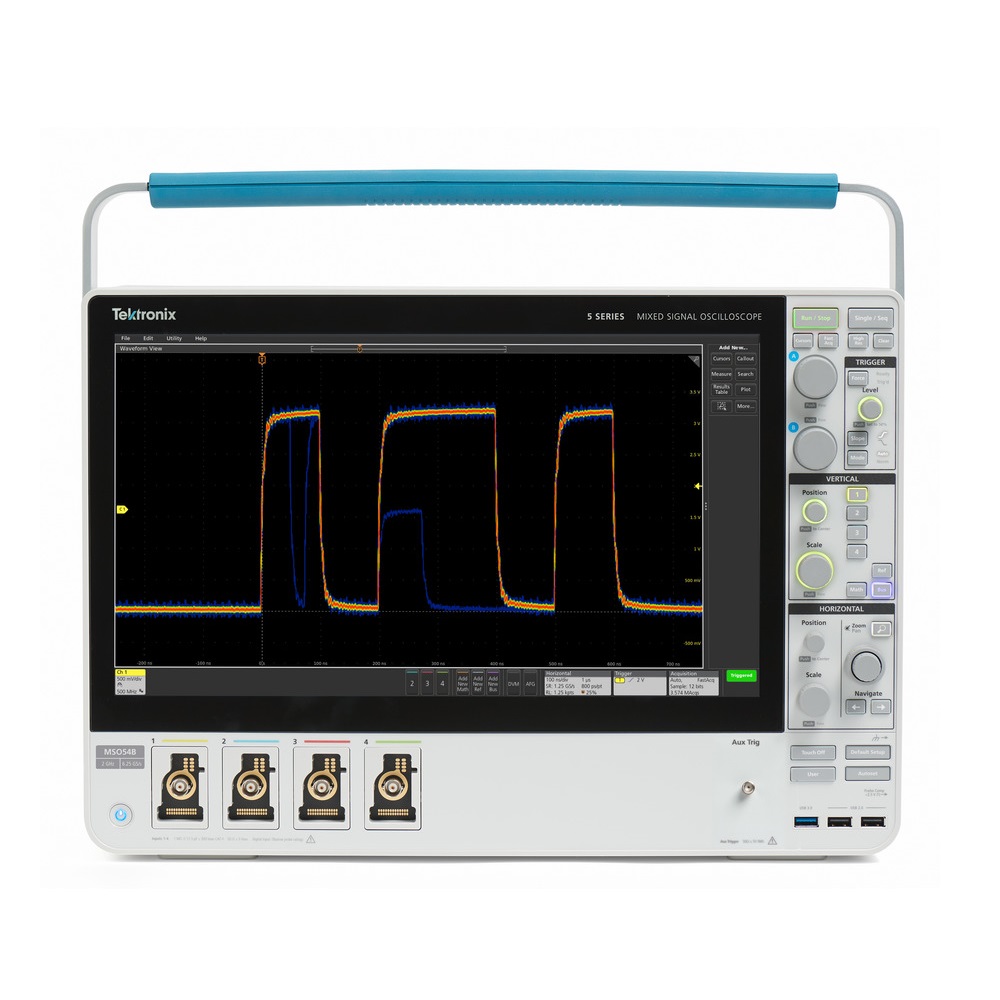

TEKTRONIX MSO54B 5-BW-1000 型混合信号示波器 (1GHz; 4-FlexChannel; 6.25GS/s)

FlexChannel inputs: 4

Maximum analog channels: 4

Maximum digital channels (with optional logic probes): 32

Bandwidth (calculated rise time): 1GHz (400 ps)

ADC resolution: 12 bits

Vertical resolution: 8 bits @ 6.25GS/s

Sample rate: 6.25 GS/s on all analog / digital channels (160 ps resolution)

Record length (std.): 62.5 Mpoints on all analog / digital channels

Record length (opt.): 125, 250, or 500 Mpoints on all analog / digital channels

Waveform capture rate: >500,000 wfms/s

Arbitrary/Function Generator (opt.): 13 predefined waveform types with up to 100 MHz output

DVM: 4-digit DVM

Trigger frequency counter: 8-digit frequency counter
