主页 温度传感器类型 PT-100、PT-200、PT-500、PT-1000 SterlingSensors RMMHI33MM01M006M 带微型（KSE）头的矿物绝缘RTD温度传感器 (Pt100 3-wire class B Ø3x1000mm; -100~600°C)

SterlingSensors RMMHI33MM01M006M 带微型（KSE）头的矿物绝缘RTD温度传感器 (Pt100 3-wire class B Ø3x1000mm; -100~600°C)


Specification

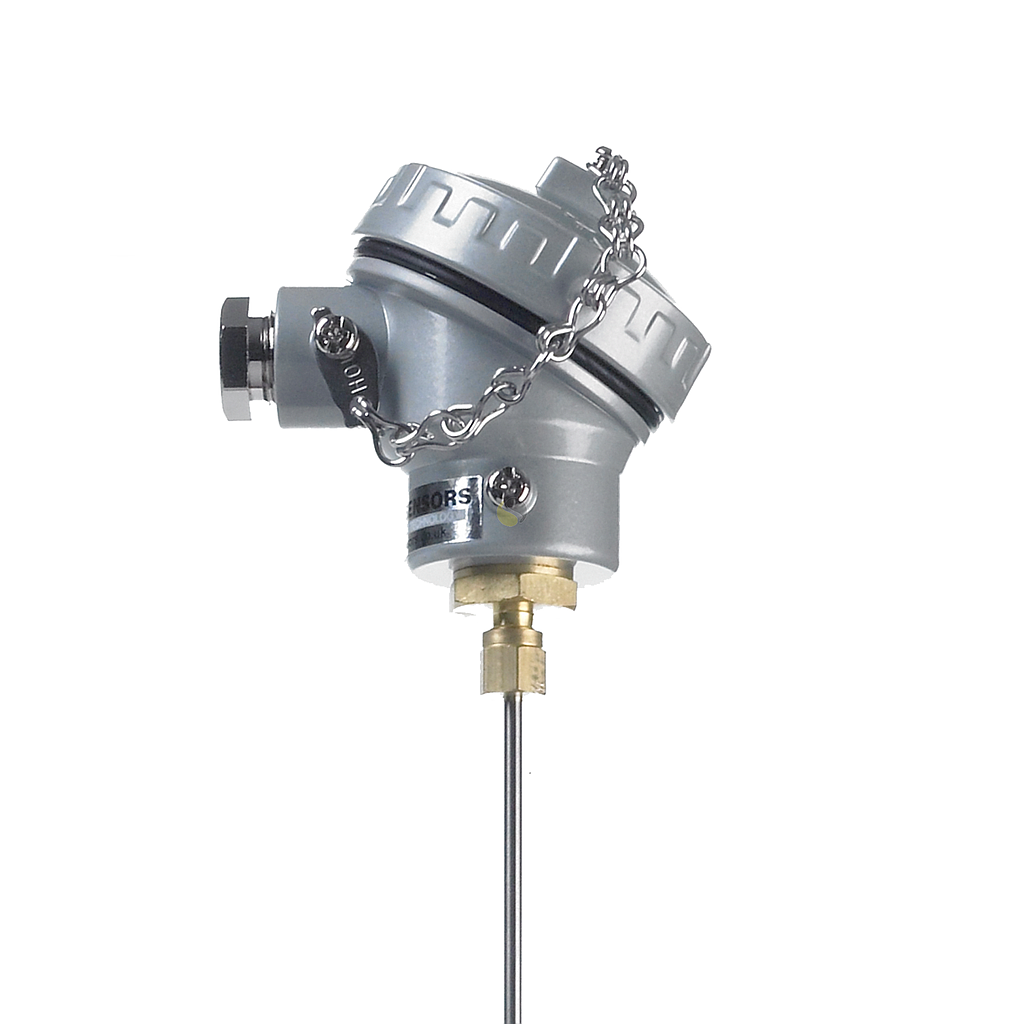

Mineral Insulated RTD with Miniature (KSE) Head

Features

  • Mineral insulated cable
  • IP68 weather-proof KSE head is ideal where access is restricted
  • Can be formed and shaped to fit the process
  • Can be made in long lengths

Application

  • Research and development
  • Oil & Gas
  • Marine and transport

3mm Diameter 316 Stainless Steel

Description

Part Number

3-wire class B 3mm dia x 100mm (316)

RMMHI33MM100006M

3-wire class B 3mm dia x 150mm (316)

RMMHI33MM150006M

3-wire class B 3mm dia x 250mm (316)

RMMHI33MM250006M

3-wire class B 3mm dia x 300mm (316)

RMMHI33MM300006M

3-wire class B 3mm dia x 400mm (316)

RMMHI33MM400006M

3-wire class B 3mm dia x 500mm (316)

RMMHI33MM500006M

3-wire class B 3mm dia x 1000mm (316)

RMMHI33MM01M006M

Transmitters

Description

Part Number

RTD in-head Transmitter

IXINHP

ATEX RTD

IXATEP

Datasheet
