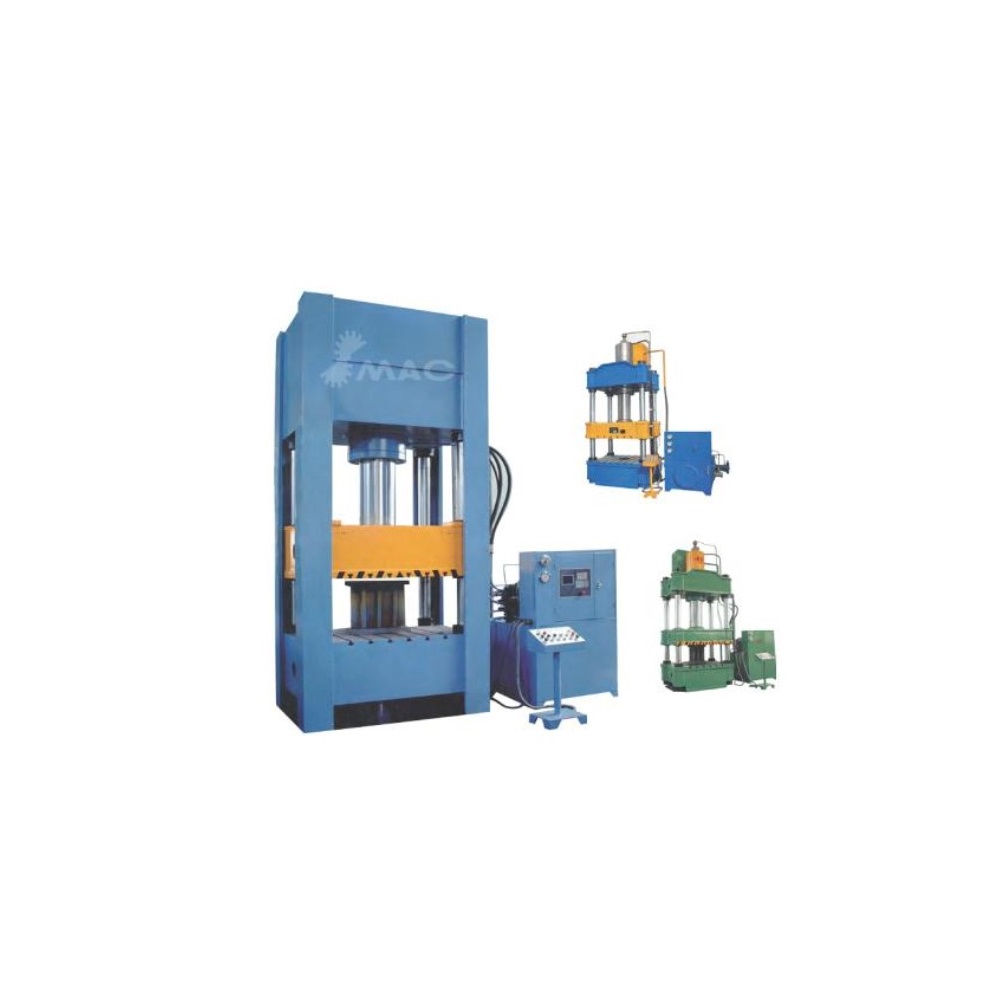

SMAC YAN32-315 Hydraulic Press

Nominal force (KN): 3150

Knock-out force (KN): 630

Max. working hydraulic pressure (Mpa): 25

Slide-stroke (mm): 800

Knock-out stroke (mm): 300

Max. Daylight (mm): 1250

Slide speed

        Descent (mm/s): 100

        Working (mm/s): 5

        Return (mm/s): 60

Effective area of table

        Left-right (mm): 1200

        Front-back (mm): 1200

Overall Size

        Left-right (mm): 3235

        Front-back (mm): 2200

        Height above ground (mm): 4295

Total motor power (kw): 22

Weight (kg): 14000

Options

1. HMI control: Can adjust the pressure , travel by touch screen , if only need the show the pressure and travel only

2. Chiller for oil tank: We have customer in Vietnam , because it is hot weather , our standard is water cooler

3. Light guards (two side, two sets): For the safety require
