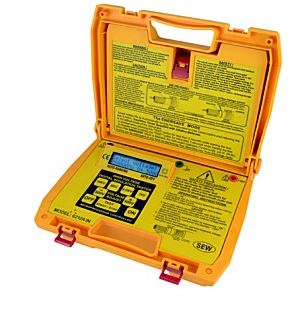

SEW 6212A IN 绝缘测试仪(10KV,500GΩ,步进0.5kV)

Test voltage (DC V): 0.5kV to 10kV (0.5kV increment steps)
Measuring ranges:25GΩ / 0.5kV, 25GΩ at 0.5kV → 500GΩ at 10kV
Accuracy:± 3% rdg ± 1 dgt
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: 3600g
Power source:1.5V(AA) × 8



● Microprocessor-controlled.
● 2 ×16 characters; large intelligent LCD module.
● 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV,
    3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV,
    9kV, 9.5kV, 10kV.
● Ener-Save™ feature to extend battery life.
● Bargraph indicates test voltage; rise and decay can be observed.
● Visual and audible warning if external voltage is present(>500Vac or
● Insulation resistance; auto-ranging on all ranges.
● Overload protection.
● Low battery indicator (read time battery voltage measurement).
● Measures insulation time duration of the test.
● Low battery consumption.
● Better than 10% accuracy on all ranges.
● Auto-off.
 Test voltage (DC V)  0.5kV to 10kV
 (0.5kV increment steps)
  Insulation resistance
 (Auto ranging)
 25GΩ / 0.5kV
 25GΩ at 0.5kV
500GΩ at 10kV
 Accuracy  ± 3% rdg ± 1 dgt
 Output power limit  50uA to 100uA (1W)
 Live warning  > 500V AC
 0°C to 40°C
 Operation-humidity  85% Max. relative humidity
 Dimensions  330(L) × 260(W) × 160(D)mm
 (battery included)
 Approx. 3600g
 Power source  1.5V “C”× 8 Alkaline batteries
 Safety standard  EN 61010-1 CAT III  300V
 EN 61326-1
