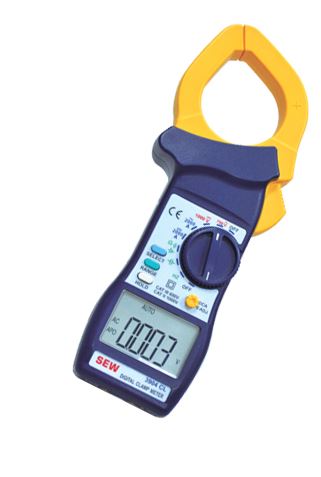

SEW 3904 CL Clamp Meter (2000A)

制造商: SEW
Model: 3904 CL
来源: Taiwan
联系
- 报价要求
价格合理详情请致电

热线:   (+84) 966520220
电话：  +84 (24) 62923267

技术规格
制造商消息

ACA:400.0/2000A /±(1.5%rdg+4dgt)
ACV: 400.0mV,4.000/40.00/400.0/750V /±(1.0%rdg+3dgt)
DCA: 400.0/2000A /±(1.5%rdg+4dgt)
DCV: 00.0mV/4.000/40.00/400.0/1000V /±(0.75%rdg+2dgt)
Ω + Continuity:
400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ /±(1.5%rdg+3dgt)
40.00MΩ ±(2.0%rdg+4dgt)
C: 2.000/20.00/200.0nF/20.00/200.0uF/2.000mF ±(3.0%rdg+5dgt)
Hz: 4.000/40.00/400.0kHz/4.000/40.00MHz/ ±(1.0%rdg+2dgt)
Conductor size: 55mm Max.
Dimensions: 265(L) × 100(W) × 42(D)mm
Weight: 510g
Power source: 9V(6F22) × 1

Details

FEATURES

● 4000 - count LCD.
● Full automatic measurement.
      ◎ Voltage measurement.
      ◎ Current measurement.
      ◎ Resistor measurement.
      ◎ Capacitor measurement
      ◎ Frequency counter.
● Range change function.
● Data Hold function freezes the reading.
● Continuity check.
● Diode measurement.
● Low battery indication.
● Auto Power Off (APO) function.
● Safety design throughout with no exposed metal parts, shielded
    banana plugs and recessed input terminals.

SPECIFICATIONS

AC A	400.0/2000A (40~500Hz) 0~1500A ±(1.5%rdg+4dgt) 1500A~2000A ±(2.5%rdg+4dgt)
AC V	400.0mV ±(2.0%rdg+3dgt) 4.000/40.00/400.0/750V ±(1.5%rdg+3dgt) 40~500Hz
DC A	400.0/2000A 0~1500A ±(1.5%rdg+4dgt) 1500A~2000A ±(2.5%rdg+4dgt)
DC V	400.0mV/4.000/40.00/400.0/1000V ±(1.0%rdg+3dgt)
Ω + Continuity	400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ ±(1.5%rdg+3dgt) 40.00MΩ ±(2.0%rdg+4dgt)
Hz	4.000/40.00/400.0kHz/4.000/40.00MHz ±(0.5%rdg+2dgt)
Capacitor	4.000/40.00/400.0nF/40.00/400.0uF/ 4.000mF ±(3.0%rdg+5dgt)
Bargraph	──
Display	3¾ (4000 counts)
Auto-ranges	ˇ
Data hold	ˇ
Low battery indication	ˇ
Auto power-off	ˇ
Max/Min. Mode	──
Relative mode	──
Conductor size	55mm Max.
Operating temperature & humidity	0ºC ~ 40ºC at < 80% RH
Dimensions	265(L) × 100(W) × 42(D)mm
Weight (battery included)	Approx. 510g
Power source	9V(6F22) × 1
Safety standard	EN 61010-1 CAT III 600V EN 61010-2-32 EN 61326-1
