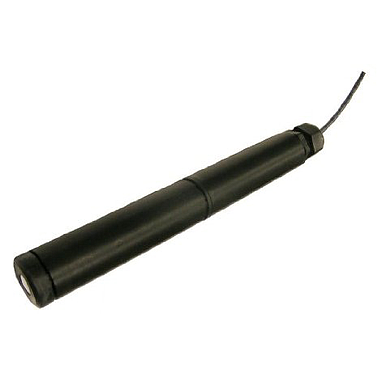

SENSOREX CLD505 二氧化氯传感器 (0-5ppm, 4-20mA)

Measuring Range: 0-5ppm
Body Material PVC
Membrane Cap Material PVC housing, Proprietary Membrane
Temperature Range 0 - 45 Degrees C
Maximum Pressure 14.7 psig (1 Bar)
Temp Comp Integrated
Cable Length 10 feet 2 conductors, tinned leads
Process Connection flow cell 1/4 inch FNPT threads
Output 4-20mA
Flow Range Min 0.2 gpm (45 l/hr), Max 0.6 gpm (135 l/hr)
Supply Voltage 12-24V DC, 250mA minimum
Cross Sensitivity Ozone, monochloramine

Detail

Datasheet
