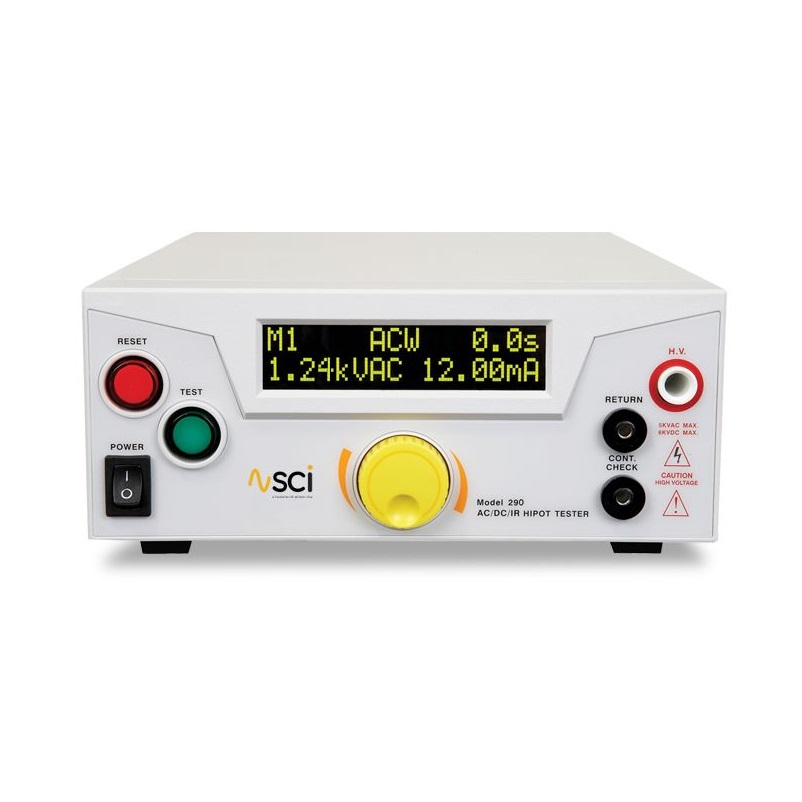

SCI 296 AC/DC Hipot Tester With Ground Continuity (5kV @ 12mA AC; 6kV @ 5 mADC)

INPUT

- Voltage: 100-120VAC/ 200-240VAC ±10% Auto Range

- Frequency: 50/60 Hz ± 5%

- Fuse: 3.15A/ 250VAC Fast-Blow

DIELECTRIC WITHSTAND TEST MODE

- Output rating: AC 0-5.00 kVAC, 12.00 mA

                         DC 0-6.00 kVDC, 5.00 mA

- Voltage setting: 0-5.00 kVAC; 0-6.00 kVDC

  + Resolution: 0.01 kV

  + Accuracy: ± (1.5% of setting + 5V)

- DC Output Ripple: <5% (6 kVDC/5mA at Resistive Load)

- Dwell timer: 0, 0.2-60 sec, (0=continuous), 0.1 sec/step

- Ramp timer: 0.2-180 sec, 0.1 sec/step

- Leakage failure settings

  + AC Hi-Limit: 0.10 - 12.00 mA

  + Lo-Limit: 0 - 12.00 mA

  + DC Hi-Limit: 0.02 - 5.00 mA

  + Lo-Limit: 0 - 5.00 mA

  + Resolution: 0.01mA

  + Accuracy: ±(2% of reading + 0.02mA)

GENERAL SPECIFICATIONS

- Continuity feature

  + Range: 0.0-1.50Ω

  + Resolution: 0.01Ω

  + Accuracy: ±(2% of setting + 0.02Ω)

- Memories: 5 (10 optional)

- Remote I/O:

  + Input: Test, Reset, Interlock

  + Output: Pass, Fail, Test-in-Process

- 3mA AC/DC current limit (optional)

  + Range: 0.00-3.00mA

  + Resolution: 0.01mA

  + Accuracy: ±(2% of setting +0.02mA)

- Safety mark: CE/cTUVus

- Dimensions (WxHxD): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300mm)

- Weight: 12lbs (5.46Kg)
