Schloeder SESD 30000 ESD-Simulator (30kV; 150pF; 330Ω)

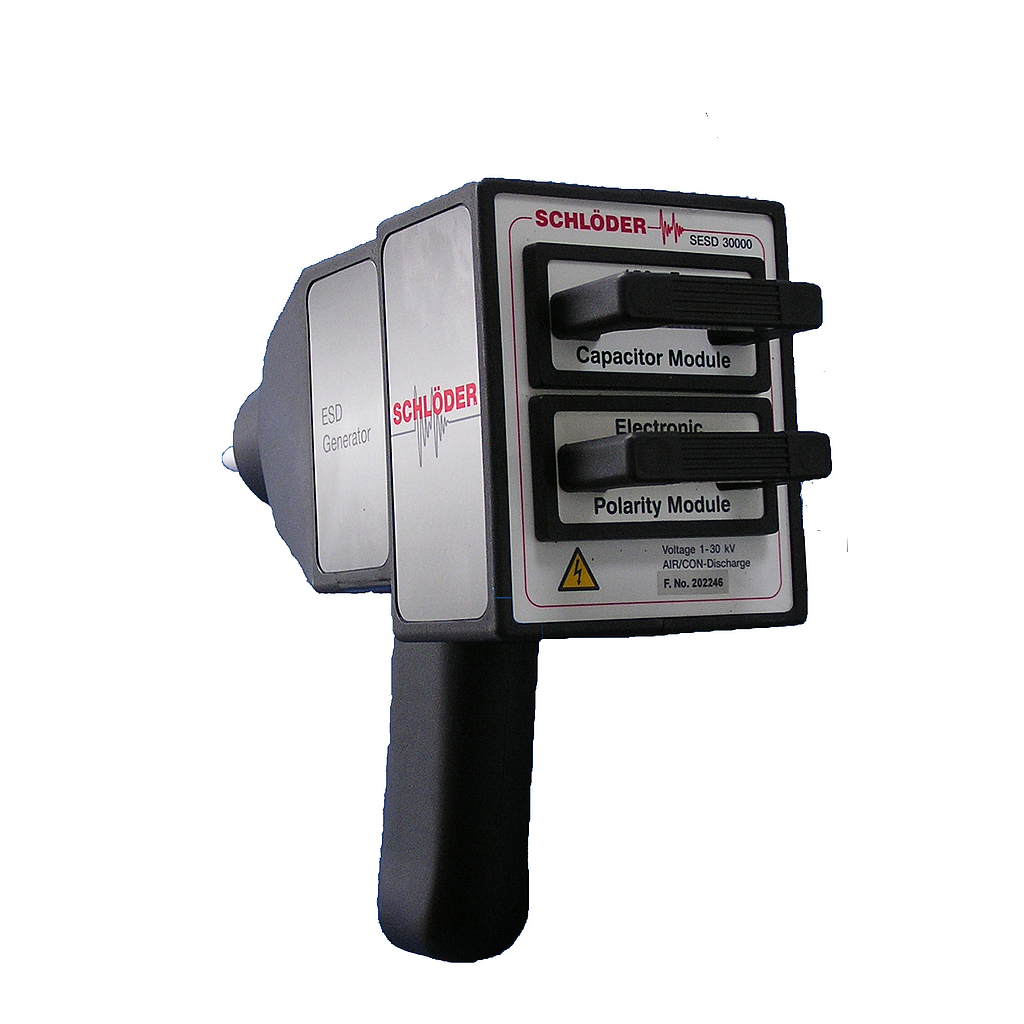

SESD Generator 30000

Output voltage: adjustment via digital potentiometer

Mode: air and contact discharge

Air discharge: 1 kV up to 30,0 kV in steps of 100 V

Contact discharge (with contact control): 1 kV up to 30,0 kV in steps of 100 V

Polarity of the output voltage: positive and negative

Repetition frequency

Air discharge: single or multiple pulses

Contact discharge: single pulse, 0.1 Hz, 0.2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

Continuous operation: at air discharge and contact discharge

Pre-selection counter: 1 - 9999

Standard Impedances: 150 pF / 330 Ω (IEC / EN 61000-4-2)

Other impedances: see options

Probes: acc. IEC / EN 61000-4-2

Operation temperature range: 0 - 40° Celsius

Relative humidity: 0 - 60 %

Weight: appr. 1500 g

Desktop Control Unit

Power supply: 85 - 264 VAC, 47 - 63 Hz

Power consumption: < 50 VA

Weight: appr. 1450 g

Detail

Options

SESD 30 Battery Retrofitting existing SESD 30000 to increase mobility

SESD 30 Battery N Retrofitting existing SESD 30000 to increase mobility, for new device only

SESD 30 C xxx Capacity module (values up to 1000 pF)

SESD 30 Rxxx Resistor module (values (0) 50 Ohm up to > 5 kOhm)

SESD 30 P200 Electronic polarity module

SESD 30 M200 Faster discharging module (rise time typically 0,45 ns)

SESD 30 S120 Optical set and remote software

SESD 30 Z 02 Special module with HV connecting cable for electro-explosive device testing

SESD 30 MOD-1 HBM-Modul 100 pF / 1500 Ohm mit Anstiegszeit > 5 ns

SESD 30 MOD-5 „Beep“ sound

SESD 30 MOD-1-U2 Modified SESD 30000: for option HBM (new calibration necessary!)

SESD 30 MOD-3-U3 Modified SESD 30000: to provide a TTL trigger signal at

the BNC connector. Delay of the SESD signal approx. 2-10 ms, jitter 2 ms

SESD 30 MOD-3-U1 Modified SESD 30000: for automatic absorption

(additional calibration has to be quoted)

SESD 271 VCP – vertical coupling plate, include earth cable SESD 272

SESD 272 Earth cable with 2 x 470 kΩ resistors, 2 m long

SESD 3025 Test tip, diameter 30 mm, for AIR discharge > 15 kV

SEDS 3026 Test tip, length 50 mm with spring pin, for automatic tests with contact discharge

SESD 3027 Test tip, length 70 mm with spring pin, for automatic tests with contact discharge

SESD 3036 Hook for use on a support arm

SESD 30 T 1000 Support arm with balancer

SESD 8800-4 ESD verification set 2 Ohm (4 GHz)

Datasheet
